TCL Multi Match Series 42,000 BTU Five-Zone Heat Pump Condensing Unit

Outdoor Model: H42FMH20XPC
Capacity: 42,000 BTU
Supports: Up to 5 Indoor Units (Five Zone)

The TCL Multi Match Series 42,000 BTU Five-Zone Heat Pump Condensing Unit (H42FMH20XPC) is TCL’s largest and most powerful multi-zone outdoor unit, engineered to provide independent heating and cooling for up to five separate indoor units using a single outdoor condenser. Designed with advanced Full DC Inverter Technology, environmentally friendly R454B refrigerant, and exceptional energy efficiency, this premium multi-zone system delivers reliable year-round comfort while reducing energy consumption, operating costs, and outdoor equipment clutter.

Ideal for large residential homes, custom homes, multi-level properties, offices, restaurants, retail stores, medical clinics, and other light commercial buildings, the 42,000 BTU Multi Match Series allows each connected indoor unit to operate independently. Every zone can maintain its own temperature, fan speed, and operating mode, providing personalized comfort while maximizing system efficiency.

Designed for Extreme Year-Round Performance

The TCL Multi Match Series is built to operate reliably in both harsh winter conditions and extreme summer temperatures.

Cooling Operating Range

• 5°F to 133°F (-15°C to 55°C)

Heating Operating Range

• -13°F to 86°F (-25°C to 30°C)

The integrated base pan heater and intelligent Smart Defrost technology help ensure dependable heating performance during freezing temperatures while maintaining efficient cooling throughout the hottest months of the year.

High-Efficiency Full DC Inverter Technology

The H42FMH20XPC utilizes a Full DC Inverter rotary compressor that continuously adjusts compressor speed according to the heating and cooling demand of each connected zone. This intelligent operation provides:

• Consistent indoor temperatures
• Lower electricity consumption
• Reduced operating costs
• Improved humidity control
• Quiet operation
• Longer equipment lifespan
• Enhanced year-round comfort

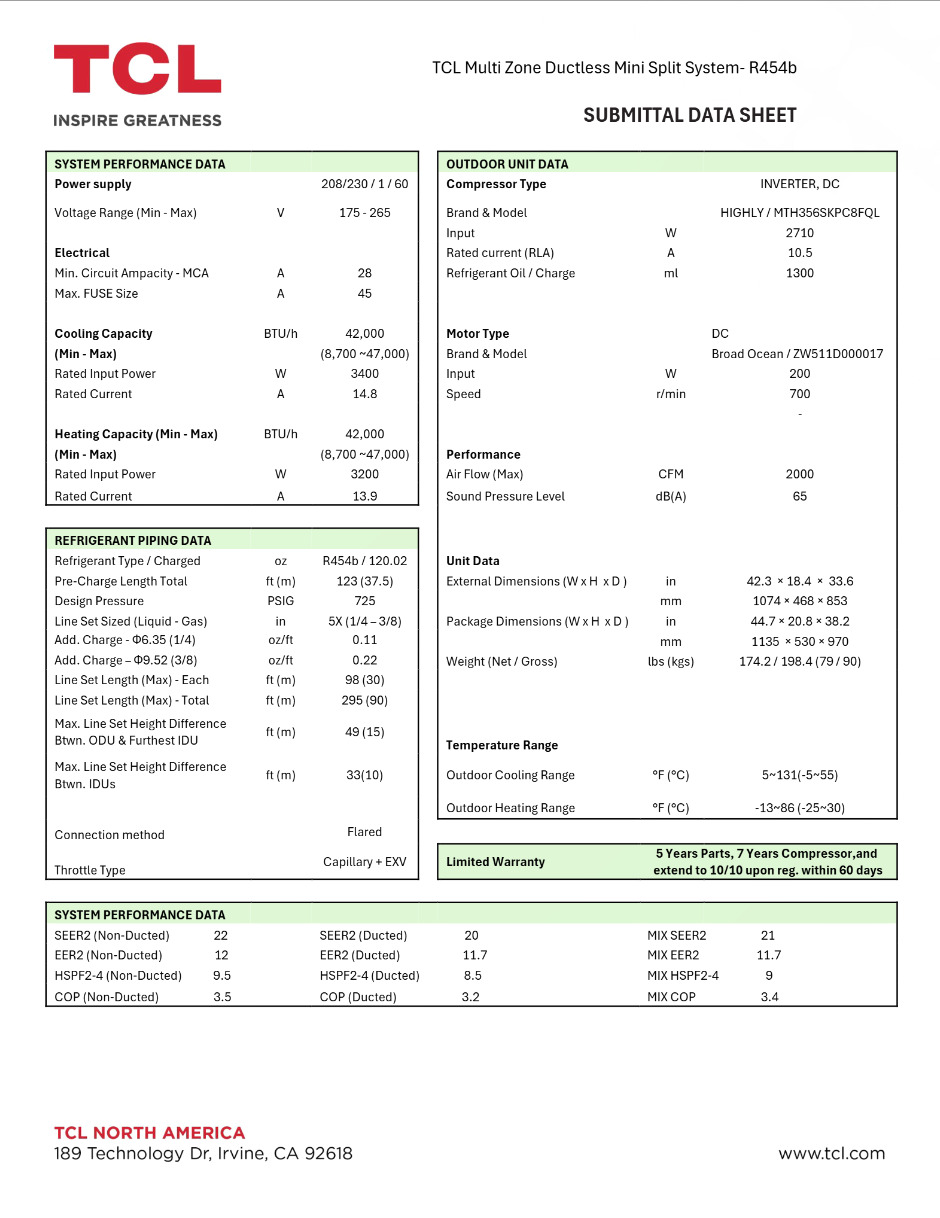

Performance Highlights (Non-Ducted Indoor Units)

• Cooling Capacity: 42,000 BTU
• Cooling Capacity Range: 8,700 – 47,000 BTU
• Heating Capacity: 42,000 BTU
• Heating Capacity Range: 8,700 – 47,000 BTU
• Up to 22 SEER2
• 12 EER2
• 9.5 HSPF2
• ENERGY STAR® Certified
• ENERGY STAR® Cold Climate Certified

The advanced inverter compressor automatically adjusts output to match the combined demand of all connected indoor units, delivering exceptional comfort while minimizing energy consumption.

Flexible Multi-Zone Installation

The 42,000 BTU Multi Match Series supports up to five independently controlled indoor units, allowing each room or zone to maintain its own desired temperature without affecting the others.

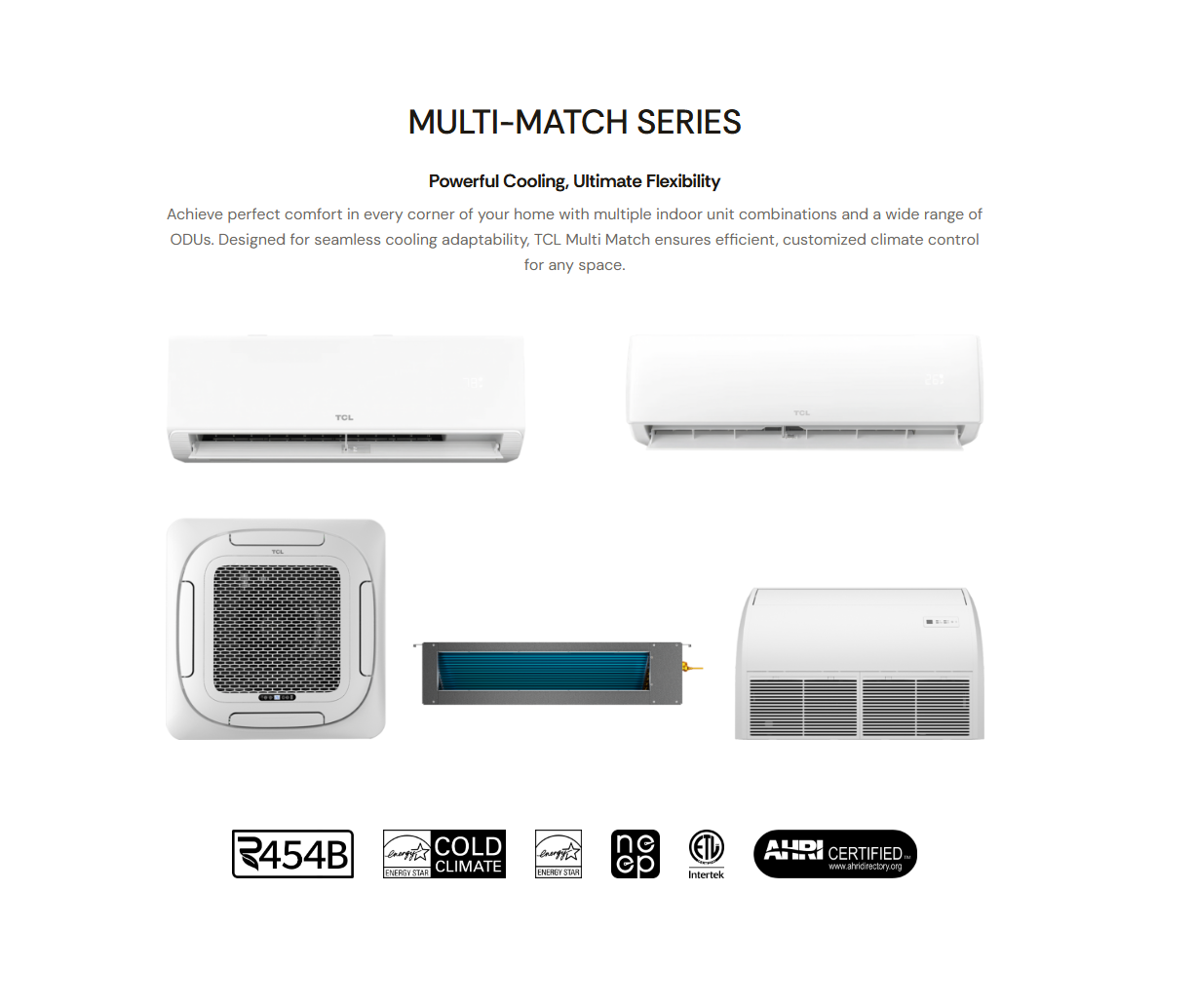

Compatible TCL indoor unit styles include:

• Hi Wall Mounted Units
• Ceiling Cassette Units
• Slim Duct Units
• Floor & Ceiling Units

This installation flexibility makes the system ideal for large homes, multi-room renovations, commercial buildings, offices, retail environments, restaurants, and other multi-zone HVAC applications.

Advanced Comfort & Protection Features

The TCL Multi Match Series includes a comprehensive range of intelligent technologies designed to maximize performance and long-term reliability, including:

• Full DC Inverter Compressor
• Smart Defrost Technology
• Built-in Base Pan Heater
• Refrigerant Leak Protection
• Voltage Protection
• Overcurrent Protection
• Overheating Protection
• Temperature Protection
• Phase Loss Protection
• Hotel Mode Compatibility (optional)
• Environmentally Friendly R454B Refrigerant

These advanced protection features help ensure dependable operation while reducing maintenance requirements and extending equipment life.

Ideal Applications

The TCL Multi Match Series 42,000 BTU Five-Zone System is ideal for:

• Large Custom Homes
• Multi-Level Homes
• Luxury Residences
• Apartments & Condominiums
• Office Buildings
• Retail Stores
• Restaurants
• Medical Clinics
• Professional Offices
• Hotels & Hospitality Applications
• Renovation Projects
• Light Commercial Buildings

Warranty Protection

Every TCL Multi Match Series outdoor unit includes:

• 5-Year Limited Parts Warranty
• 7-Year Limited Compressor Warranty
• 10-Year Limited Warranty with Product Registration Within 60 Days of Installation

Key Features

• 42,000 BTU Multi-Zone Heat Pump Condensing Unit
• Outdoor Model: H42FMH20XPC
• Supports Up to 5 Indoor Units
• 208-230V / 1 Phase / 60Hz
• Up to 22 SEER2, 12 EER2, 9.5 HSPF2
• Cooling Operation: 5°F to 133°F (-15°C to 55°C)
• Heating Operation: -13°F to 86°F (-25°C to 30°C)
• Full DC Inverter Technology
• Smart Defrost
• Built-in Base Pan Heater
• Refrigerant Leak Protection
• Compatible with Hi Wall, Ceiling Cassette, Slim Duct, and Floor & Ceiling Indoor Units
• ENERGY STAR® Certified
• ENERGY STAR® Cold Climate Certified
• Uses environmentally friendly R454B Refrigerant
• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• 10-Year Limited Warranty with Product Registration
