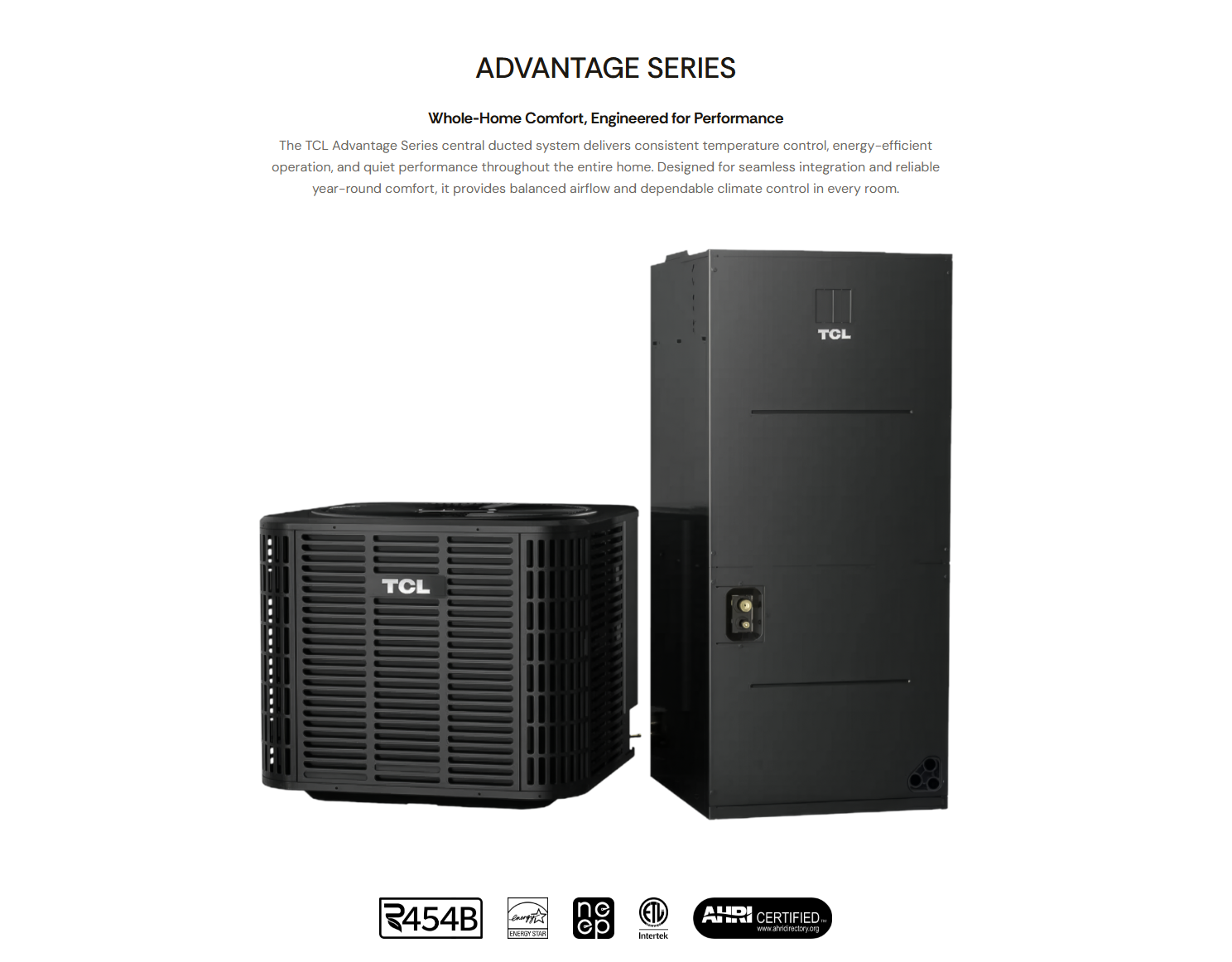

TCL Advantage Series 2 Ton (24,000 BTU) Central Heat Pump System with Air Handler

Indoor Model: H24AHH17XAE | Outdoor Model: H36TDH18XAC

The TCL Advantage Series 2 Ton (24,000 BTU) Central Heat Pump System combines the H24AHH17XAE indoor air handler with the H36TDH18XAC inverter outdoor heat pump to deliver reliable, energy-efficient heating and cooling for residential homes and light commercial applications. Engineered with advanced inverter technology and environmentally friendly R454B refrigerant, this matched system provides exceptional comfort, lower energy consumption, and quiet operation throughout the year.

Designed to maintain consistent indoor temperatures in a wide range of climates, the TCL Advantage Series is an excellent choice for new home construction, residential HVAC replacement projects, condominiums, townhouses, and small commercial spaces. With up to 19 SEER2 efficiency, this complete heat pump system delivers dependable performance while helping reduce monthly utility costs.

Wide Operating Temperature Range

Built for year-round performance, the TCL Advantage Series operates efficiently in both hot summers and cold winters.

Cooling Operating Range

• 5°F to 125°F (-15°C to 52°C)

Heating Operating Range

• -5°F to 80°F (-20°C to 27°C)

The system delivers dependable cooling during extreme summer temperatures and reliable heating in cold weather, making it suitable for a wide range of residential climates.

High-Efficiency Inverter Performance

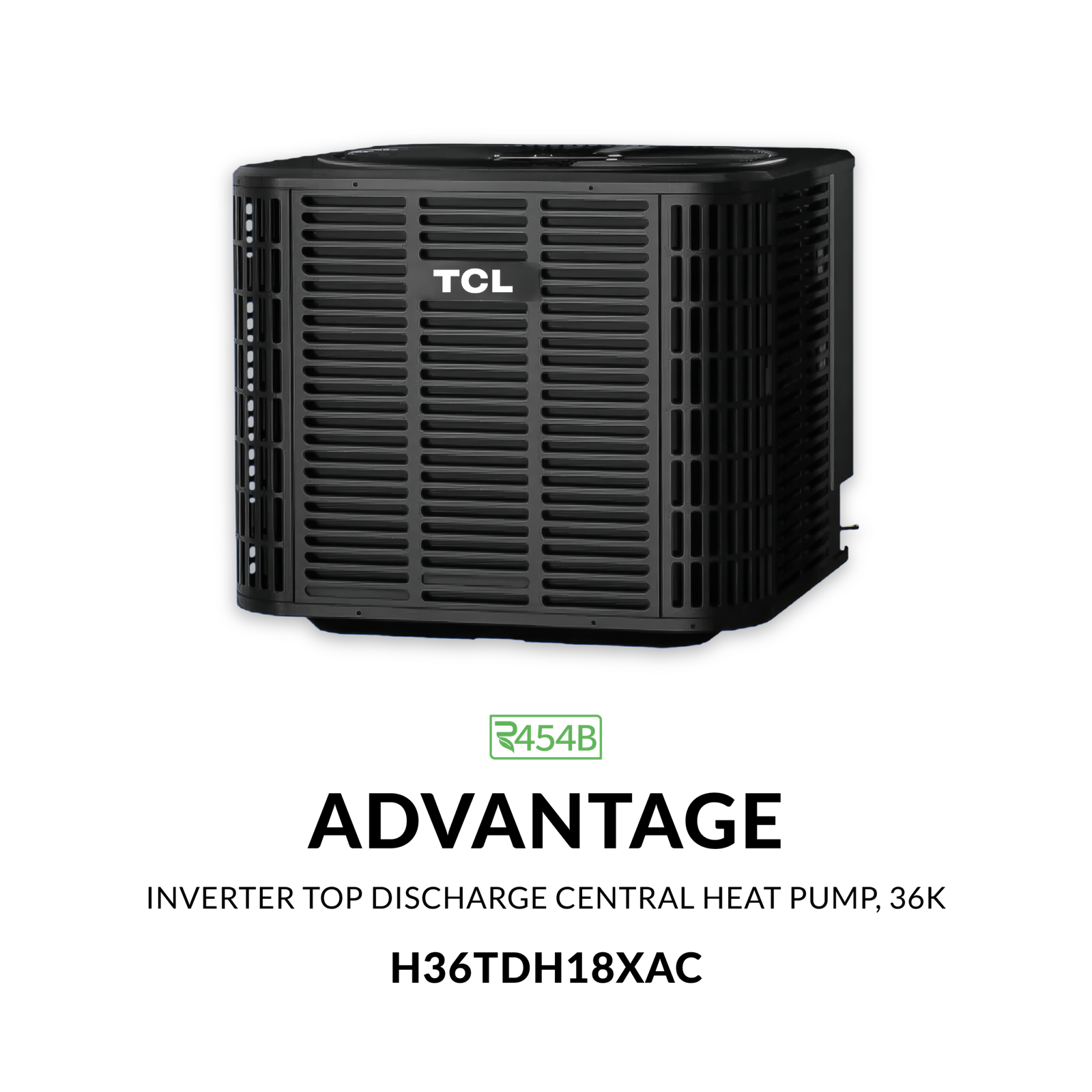

The H36TDH18XAC outdoor unit utilizes a variable-speed rotary inverter compressor that continuously adjusts its output based on the heating and cooling demand of the home. This intelligent technology provides:

• More consistent indoor temperatures
• Lower electricity consumption
• Reduced operating costs
• Improved humidity control
• Quiet operation
• Enhanced year-round comfort

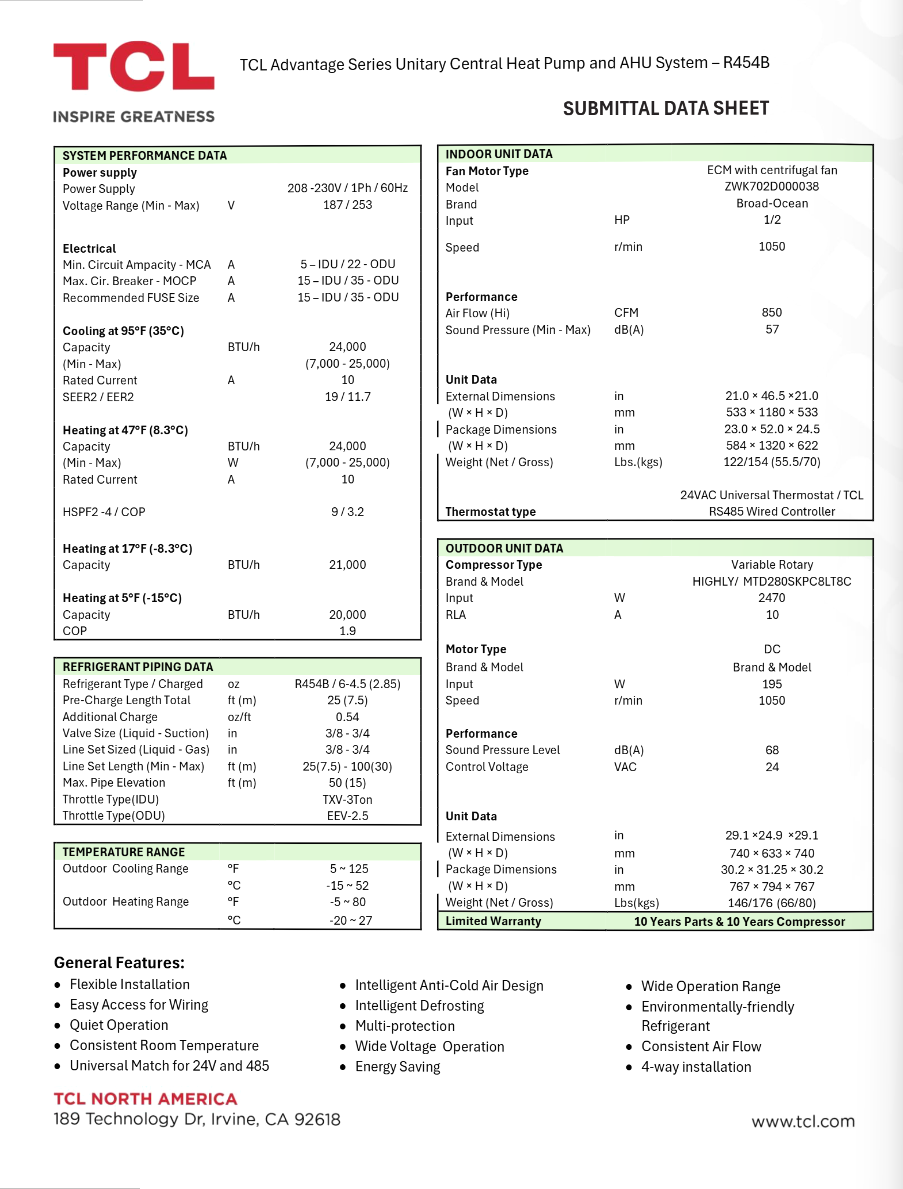

Performance specifications include:

• 24,000 BTU Cooling Capacity
• 24,000 BTU Heating Capacity at 47°F
• 21,000 BTU Heating Capacity at 17°F
• 20,000 BTU Heating Capacity at 5°F
• Up to 19 SEER2
• 11.7 EER2
• 9 HSPF2

These ratings provide an excellent balance of comfort, efficiency, and long-term energy savings.

High-Efficiency Air Handler

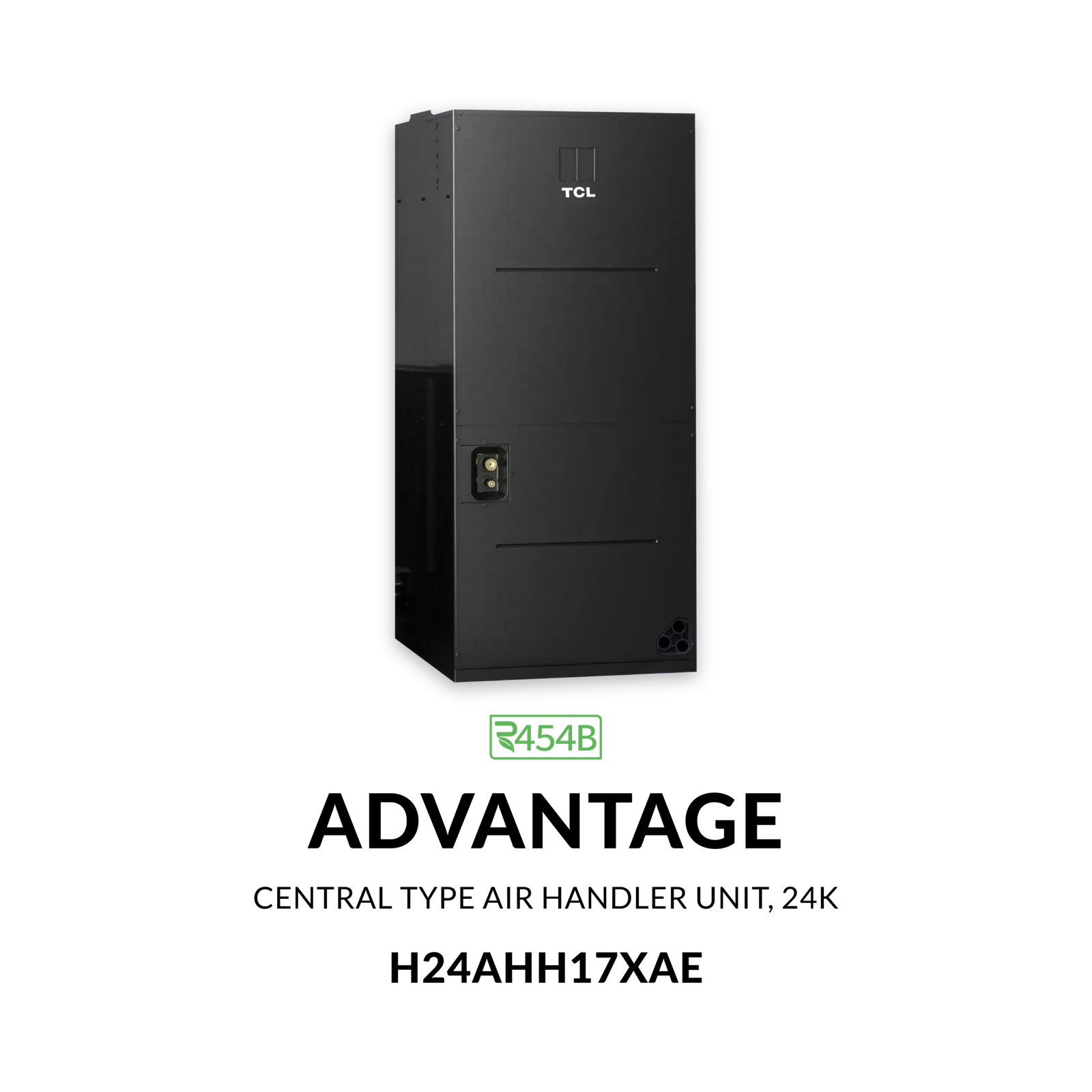

The H24AHH17XAE indoor air handler features a high-efficiency ECM centrifugal blower motor that delivers smooth, consistent airflow throughout the home while operating quietly and efficiently.

Features include:

• Constant airflow performance (up to 850 CFM)
• Durable aluminum indoor coil
• Easy maintenance access
• Universal compatibility with 24VAC thermostats
• Compatible with TCL RS485 wired controllers
• Flexible installation options

These features help maximize indoor comfort while maintaining consistent airflow and system efficiency.

Environmentally Friendly R454B Refrigerant

The TCL Advantage Series utilizes R454B refrigerant, a next-generation refrigerant with a significantly lower Global Warming Potential (GWP) than previous refrigerants. R454B improves overall system efficiency while supporting more environmentally responsible HVAC installations.

Designed for Easy Installation & Reliable Operation

Engineered for both contractors and homeowners, the Advantage Series includes numerous intelligent features that simplify installation and improve long-term reliability, including:

• Flexible installation
• Easy wiring access
• Intelligent anti-cold air function
• Intelligent defrost technology
• Multi-protection safety system
• Wide voltage operation
• Energy-saving operation
• Consistent airflow
• Four-way installation capability
• Quiet operation

These advanced features help reduce maintenance requirements while delivering dependable heating and cooling throughout every season.

Ideal Applications

The TCL Advantage Series 2 Ton Heat Pump System is ideal for:

• Single-family homes
• Townhouses
• Condominiums
• Apartments
• Residential HVAC replacement projects
• New home construction
• Home additions
• Small offices
• Light commercial spaces

Warranty Protection

The TCL Advantage Series includes:

• 10-Year Limited Parts Warranty
• 10-Year Limited Compressor Warranty

The system is also AHRI Certified and ETL Listed, providing independently verified performance, efficiency, and quality.

Key Features

• Complete 2 Ton (24,000 BTU) Central Heat Pump System
• Indoor Model: H24AHH17XAE
• Outdoor Model: H36TDH18XAC
• Up to 19 SEER2, 11.7 EER2, 9 HSPF2
• Variable-Speed Inverter Compressor
• ECM Variable-Speed Indoor Blower
• R454B Low-GWP Refrigerant
• Cooling Operation: 5°F to 125°F (-15°C to 52°C)
• Heating Operation: -5°F to 80°F (-20°C to 27°C)
• Universal 24VAC Thermostat Compatible
• TCL RS485 Wired Controller Compatible
• Intelligent Defrost & Anti-Cold Air Functions
• Quiet Operation
• AHRI Certified
• ETL Listed
• 10-Year Parts Warranty
• 10-Year Compressor Warranty
