TCL Multi Match Series 36,000 BTU Quad-Zone Heat Pump Condensing Unit

Outdoor Model: H36FMH36XPC
Capacity: 36,000 BTU
Supports: Up to 4 Indoor Units (Quad Zone)

The TCL Multi Match Series 36,000 BTU Quad-Zone Heat Pump Condensing Unit (H36FMH36XPC) is a premium multi-zone HVAC solution engineered to provide independent heating and cooling for up to four separate rooms or zones using a single outdoor unit. Featuring advanced Full DC Inverter Technology, environmentally friendly R454B refrigerant, and industry-leading energy efficiency, this high-capacity outdoor unit delivers reliable year-round comfort while reducing energy consumption and eliminating the need for multiple outdoor condensers.

Designed for residential and light commercial applications, the 36,000 BTU Multi Match Series is an excellent choice for larger homes, townhouses, apartments, offices, retail stores, restaurants, medical clinics, and renovation projects where individual room temperature control is essential. Each connected indoor unit operates independently, allowing every zone to maintain its own temperature and operating mode for maximum comfort and energy savings.

Designed for Extreme Year-Round Performance

The TCL Multi Match Series is built to operate reliably in demanding climates, providing dependable heating and cooling throughout the year.

Cooling Operating Range

• 5°F to 133°F (-15°C to 55°C)

Heating Operating Range

• -13°F to 86°F (-25°C to 30°C)

The integrated base pan heater and intelligent Smart Defrost technology help maintain reliable heating performance during freezing winter temperatures while ensuring efficient cooling throughout the hottest summer months.

High-Efficiency Full DC Inverter Technology

The H36FMH36XPC utilizes a Full DC Inverter rotary compressor that continuously adjusts compressor speed based on the heating and cooling demand of each connected indoor unit. This intelligent technology provides:

• Consistent indoor temperatures
• Lower electricity consumption
• Reduced operating costs
• Improved humidity control
• Quiet operation
• Longer equipment lifespan
• Enhanced year-round comfort

Performance Highlights (Non-Ducted Indoor Units)

• Cooling Capacity: 36,000 BTU
• Cooling Capacity Range: 10,000 – 39,500 BTU
• Heating Capacity: 39,000 BTU
• Heating Capacity Range: 10,000 – 42,300 BTU
• Up to 24 SEER2
• 13 EER2
• 10 HSPF2
• ENERGY STAR® Certified
• ENERGY STAR® Cold Climate Certified

This advanced inverter technology automatically matches system output to the heating and cooling requirements of each zone, maximizing comfort while minimizing energy consumption.

Flexible Multi-Zone Installation

The 36,000 BTU Multi Match Series supports up to four independently controlled indoor units, allowing each room to maintain its own desired temperature and operating mode.

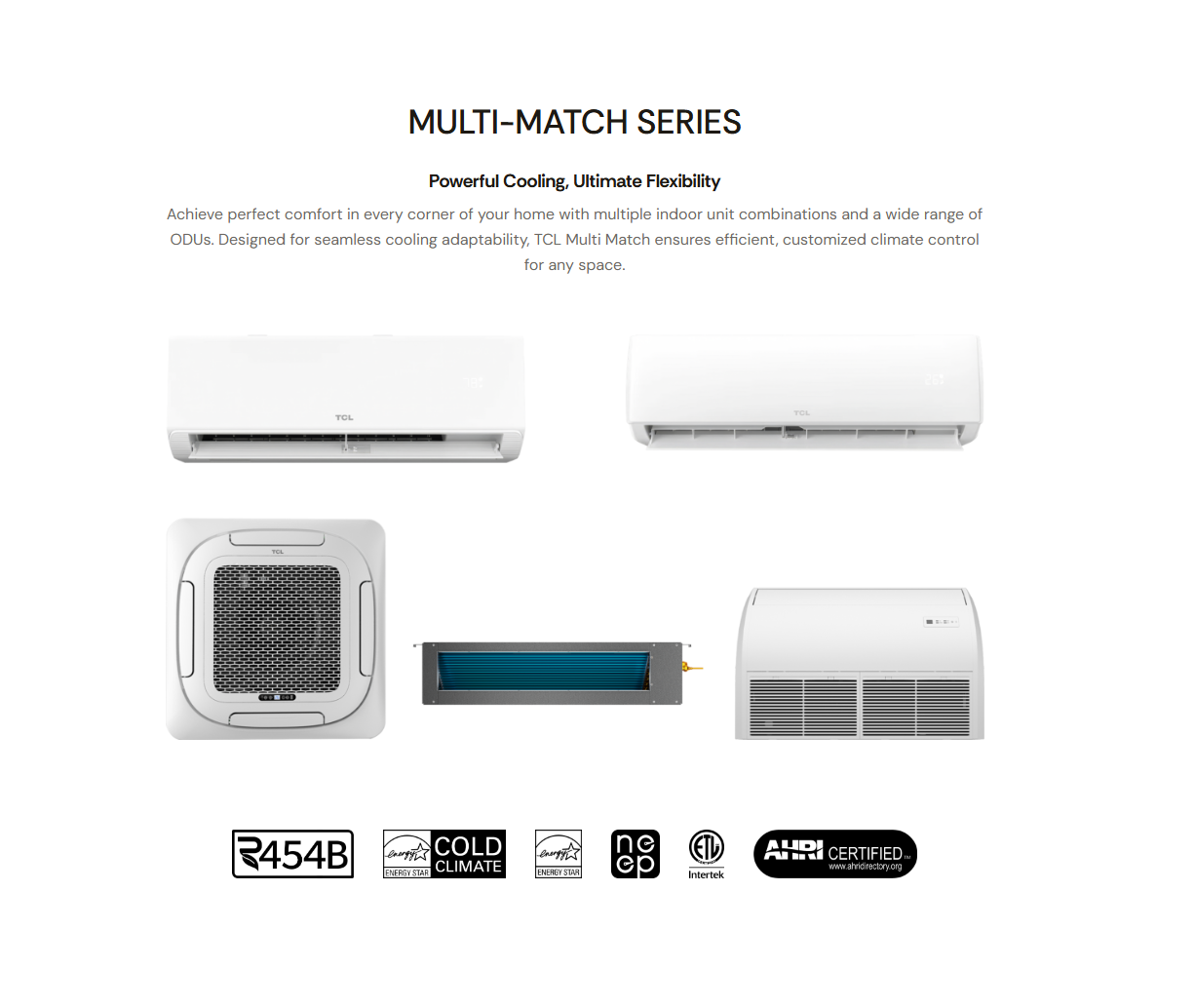

Compatible TCL indoor unit options include:

• Hi Wall Mounted Units
• Ceiling Cassette Units
• Slim Duct Units
• Floor & Ceiling Units

This flexibility makes the system an ideal solution for whole-home comfort, large residential properties, commercial offices, retail environments, and multi-room HVAC installations.

Advanced Comfort & Protection Features

The TCL Multi Match Series includes numerous intelligent technologies designed to improve comfort, reliability, and long-term performance, including:

• Full DC Inverter Compressor
• Smart Defrost Technology
• Built-in Base Pan Heater
• Refrigerant Leak Protection
• Voltage Protection
• Overcurrent Protection
• Overheating Protection
• Temperature Protection
• Phase Loss Protection
• Hotel Mode Compatibility (optional)
• Environmentally Friendly R454B Refrigerant

These advanced technologies help maximize system reliability while reducing maintenance requirements and extending equipment life.

Ideal Applications

The TCL Multi Match Series 36,000 BTU Quad-Zone System is ideal for:

• Large Single-Family Homes
• Multi-Level Homes
• Townhouses
• Apartments
• Condominiums
• Office Buildings
• Retail Stores
• Restaurants
• Medical Clinics
• Professional Offices
• Renovation Projects
• Light Commercial Applications

Warranty Protection

Every TCL Multi Match Series outdoor unit includes:

• 5-Year Limited Parts Warranty
• 7-Year Limited Compressor Warranty
• 10-Year Limited Warranty with Product Registration Within 60 Days of Installation

Key Features

• 36,000 BTU Multi-Zone Heat Pump Condensing Unit
• Outdoor Model: H36FMH36XPC
• Supports Up to 4 Indoor Units
• 208-230V / 1 Phase / 60Hz
• Up to 24 SEER2, 13 EER2, 10 HSPF2
• Cooling Operation: 5°F to 133°F (-15°C to 55°C)
• Heating Operation: -13°F to 86°F (-25°C to 30°C)
• Full DC Inverter Technology
• Smart Defrost
• Built-in Base Pan Heater
• Refrigerant Leak Protection
• Compatible with Hi Wall, Ceiling Cassette, Slim Duct, and Floor & Ceiling Indoor Units
• ENERGY STAR® Certified
• ENERGY STAR® Cold Climate Certified
• Uses environmentally friendly R454B Refrigerant
• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• 10-Year Limited Warranty with Product Registration
