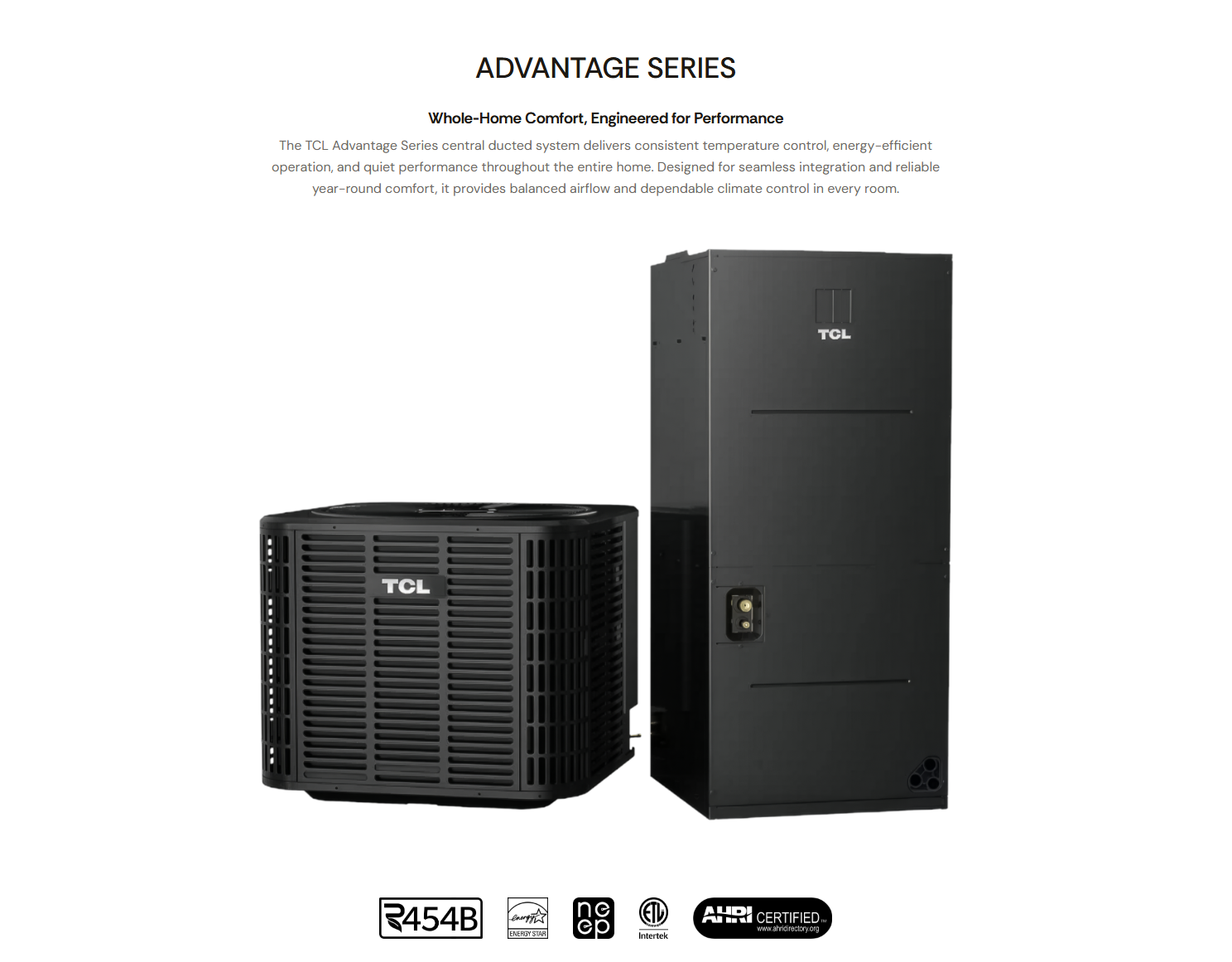

TCL Advantage Series Inverter Heat Pump System 4 Ton (48,000 BTU) Central Heat Pump System with Air Handler

Indoor Model: H48AHH18XAE | Outdoor Model: H48TDH18XAC

The TCL Advantage Series 4 Ton (48,000 BTU) Central Heat Pump System combines the H48AHH18XAE indoor air handler with the H48TDH18XAC inverter outdoor heat pump to provide powerful, energy-efficient heating and cooling for larger residential homes and light commercial applications. Designed with advanced inverter technology and environmentally friendly R454B refrigerant, this matched HVAC system delivers exceptional year-round comfort, quiet operation, and lower energy consumption while maintaining precise indoor temperatures in every season.

Whether you’re replacing an existing central HVAC system or installing equipment in a new construction project, the TCL Advantage Series offers an excellent combination of efficiency, reliability, and long-term value. With up to 19 SEER2 cooling efficiency, this complete heat pump system helps lower energy costs while delivering dependable heating and cooling throughout the year.

Wide Operating Temperature Range

Built to perform in demanding climates, the TCL Advantage Series provides reliable operation in both extreme summer heat and cold winter conditions.

Cooling Operating Range

• 5°F to 125°F (-15°C to 52°C)

Heating Operating Range

• -5°F to 80°F (-20°C to 27°C)

The system is engineered to provide dependable cooling during high outdoor temperatures while maintaining efficient heating performance in colder weather.

High-Efficiency Inverter Performance

The H48TDH18XAC outdoor heat pump utilizes a variable-speed rotary inverter compressor that continuously adjusts compressor speed to match the heating and cooling demand of your home or business. This advanced technology provides:

• Consistent indoor temperatures
• Lower electricity consumption
• Reduced operating costs
• Improved humidity control
• Quiet operation
• Enhanced year-round comfort

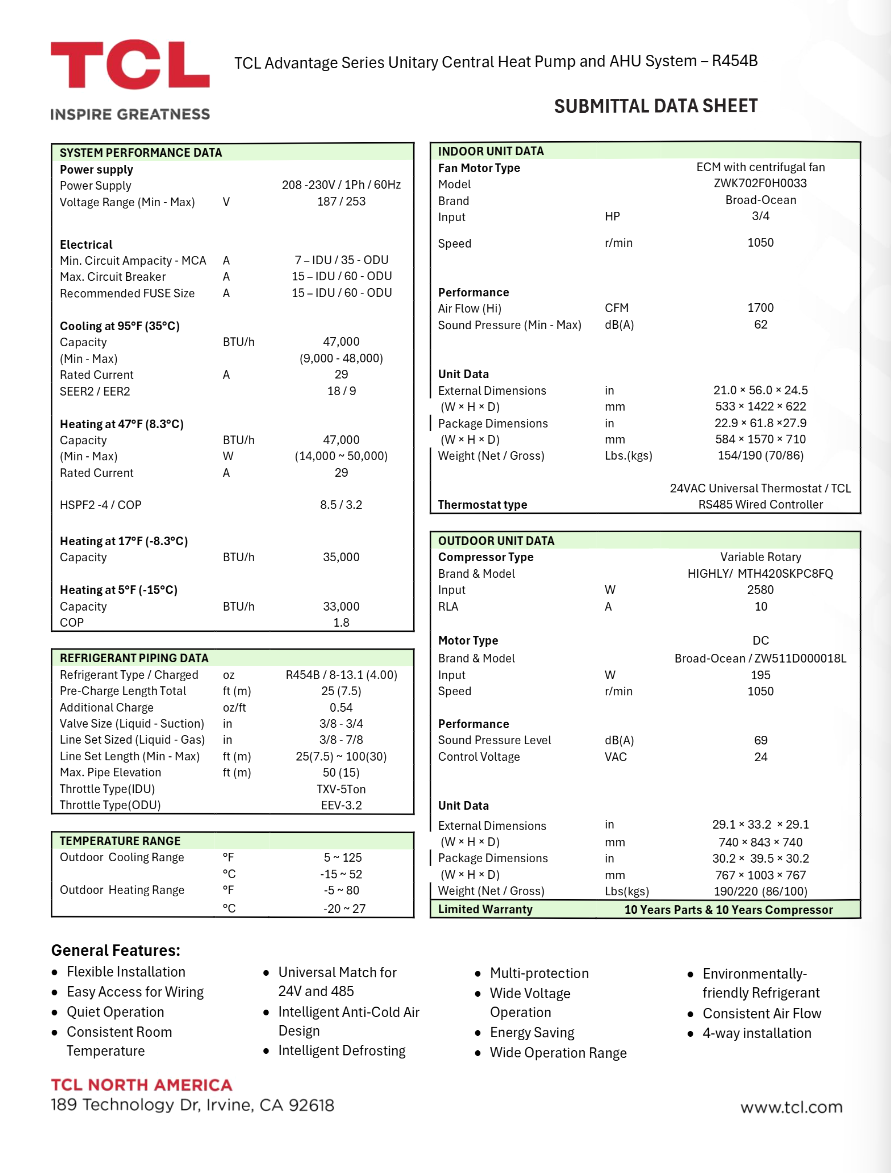

Performance specifications include:

• 48,000 BTU Cooling Capacity
• 48,000 BTU Heating Capacity at 47°F
• High-efficiency inverter operation
• Up to 19 SEER2
• Excellent year-round heating and cooling performance

These performance ratings provide an outstanding balance of efficiency, comfort, and long-term energy savings.

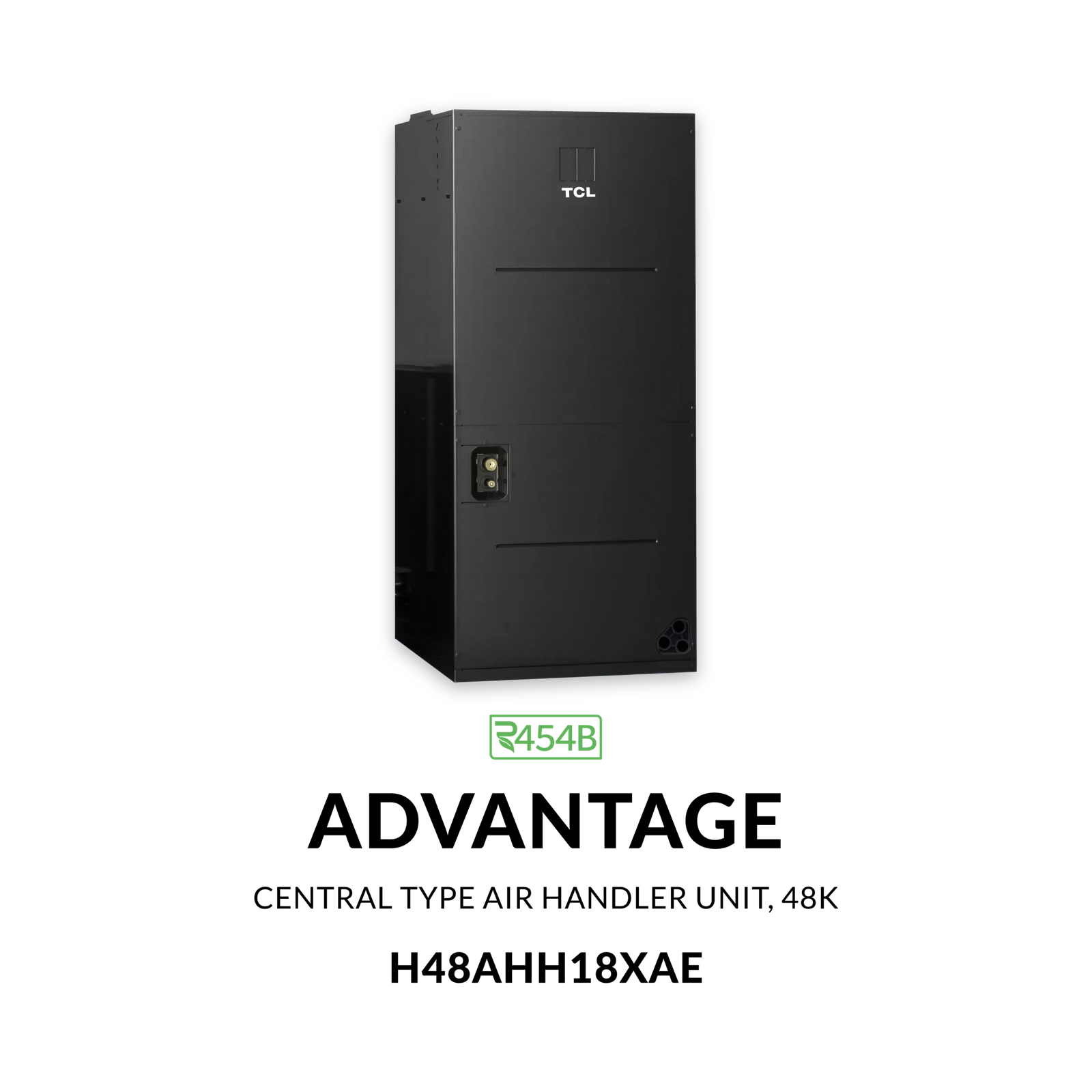

High-Efficiency Air Handler

The H48AHH18XAE indoor air handler features a high-efficiency ECM centrifugal blower motor designed to provide smooth, quiet, and consistent airflow throughout the building.

Features include:

• Constant airflow performance
• Durable aluminum indoor coil
• Easy maintenance access
• Universal compatibility with 24VAC thermostats
• Compatible with TCL RS485 wired controllers
• Flexible installation options

These features help maximize indoor comfort while maintaining consistent airflow and efficient system performance.

Environmentally Friendly R454B Refrigerant

The TCL Advantage Series utilizes R454B refrigerant, a next-generation refrigerant with a significantly lower Global Warming Potential (GWP) than previous refrigerants. R454B improves overall HVAC efficiency while supporting environmentally responsible heating and cooling installations.

Smart Design for Easy Installation & Reliable Operation

Designed for both contractors and homeowners, the Advantage Series incorporates intelligent features that simplify installation and improve long-term reliability, including:

• Flexible installation
• Easy wiring access
• Intelligent anti-cold air function
• Intelligent defrost technology
• Multi-protection safety system
• Wide voltage operation
• Energy-saving operation
• Consistent airflow
• Four-way installation capability
• Quiet operation

These advanced technologies help reduce maintenance requirements while ensuring dependable comfort throughout the life of the system.

Ideal Applications

The TCL Advantage Series 4 Ton Heat Pump System is ideal for:

• Large single-family homes
• Multi-level residences
• Open-concept homes
• Residential HVAC replacement projects
• New home construction
• Offices
• Retail stores
• Restaurants
• Professional buildings
• Light commercial applications

Warranty Protection

The TCL Advantage Series includes:

• 10-Year Limited Parts Warranty
• 10-Year Limited Compressor Warranty

The system is also AHRI Certified and ETL Listed, providing independently verified performance, quality, and reliability.

Key Features

• Complete 4 Ton (48,000 BTU) Central Heat Pump System
• Indoor Model: H48AHH18XAE
• Outdoor Model: H48TDH18XAC
• Up to 19 SEER2 Energy Efficiency
• Variable-Speed Inverter Compressor
• ECM Variable-Speed Indoor Blower
• Environmentally Friendly R454B Refrigerant
• Cooling Operation: 5°F to 125°F (-15°C to 52°C)
• Heating Operation: -5°F to 80°F (-20°C to 27°C)
• Universal 24VAC Thermostat Compatible
• TCL RS485 Wired Controller Compatible
• Intelligent Defrost & Anti-Cold Air Functions
• Quiet Operation
• AHRI Certified
• ETL Listed
• 10-Year Parts Warranty
• 10-Year Compressor Warranty
