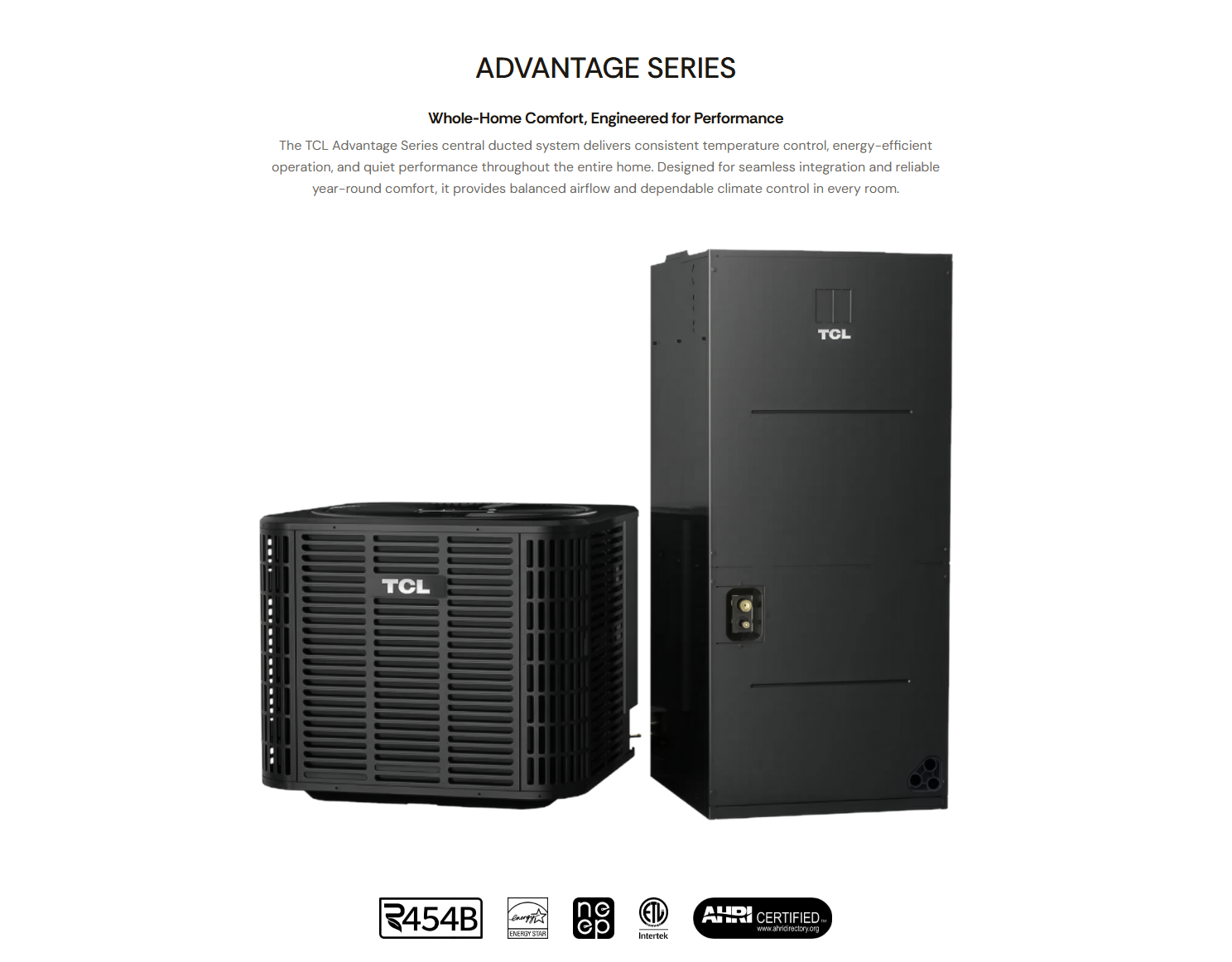

TCL Advantage Series 3 Ton (36,000 BTU) Central Heat Pump System with Air Handler

Indoor Model: H36AHH18XAE | Outdoor Model: H36TDH18XAC

The TCL Advantage Series 3 Ton (36,000 BTU) Central Heat Pump System combines the H36AHH18XAE indoor air handler with the H36TDH18XAC inverter outdoor heat pump to deliver reliable, energy-efficient heating and cooling for residential homes and light commercial applications. Featuring advanced inverter technology and environmentally friendly R454B refrigerant, this matched system provides exceptional comfort, quiet operation, and lower energy consumption while maintaining precise indoor temperatures throughout the year.

Designed for new home construction, HVAC replacement projects, and residential or light commercial installations, the TCL Advantage Series delivers an excellent balance of efficiency, performance, and long-term reliability. With up to 19 SEER2 cooling efficiency, the system helps reduce monthly utility costs while providing dependable year-round comfort.

Wide Operating Temperature Range

Engineered for demanding climates, the TCL Advantage Series provides reliable heating and cooling in both extreme summer and winter conditions.

Cooling Operating Range

• 5°F to 125°F (-15°C to 52°C)

Heating Operating Range

• -5°F to 80°F (-20°C to 27°C)

The system is designed to maintain dependable cooling during hot weather while providing efficient heating in cold outdoor temperatures.

High-Efficiency Inverter Performance

The H36TDH18XAC outdoor heat pump utilizes a variable-speed rotary inverter compressor that continuously adjusts compressor speed to match the heating and cooling demand of your home. This intelligent technology provides:

• Consistent indoor temperatures
• Lower electricity consumption
• Reduced operating costs
• Improved humidity control
• Quiet operation
• Enhanced year-round comfort

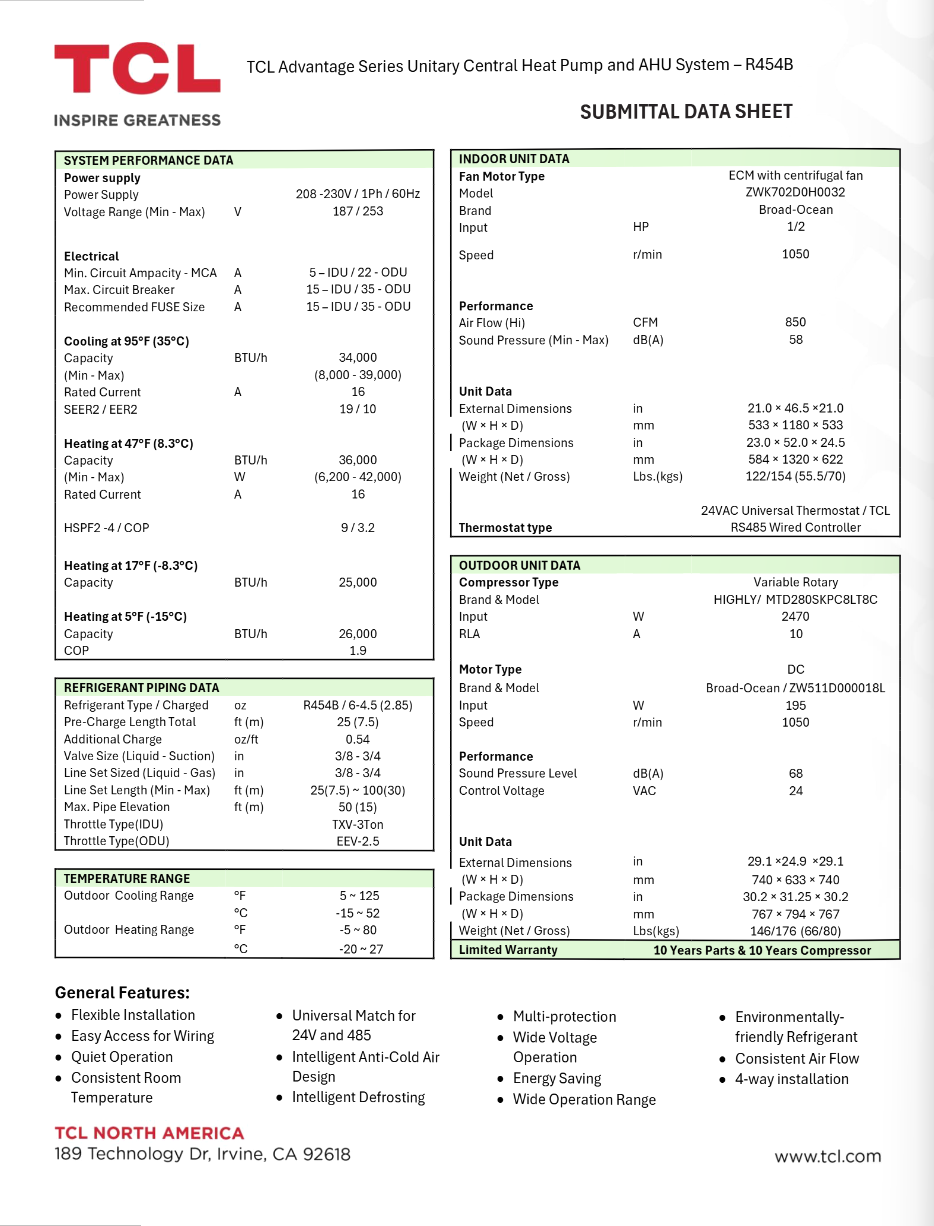

Performance specifications include:

• 34,000 BTU Cooling Capacity (9,000–36,000 BTU modulation)
• 36,000 BTU Heating Capacity at 47°F
• 25,000 BTU Heating Capacity at 17°F
• 26,000 BTU Heating Capacity at 5°F
• Up to 19 SEER2
• 10 EER2
• 9 HSPF2

These performance ratings provide an excellent combination of efficiency, comfort, and long-term energy savings.

High-Efficiency Air Handler

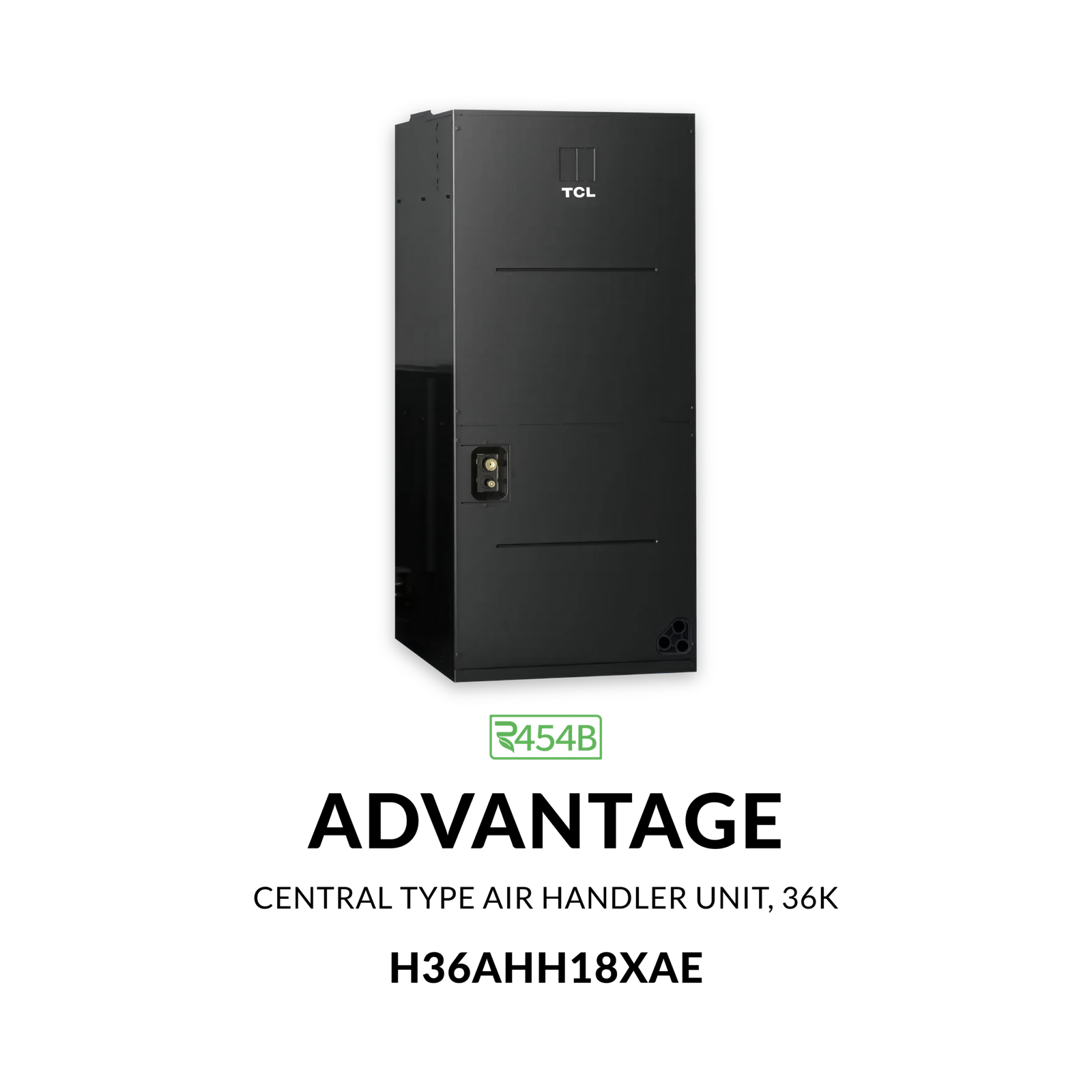

The H36AHH18XAE indoor air handler features a high-efficiency ECM centrifugal blower motor designed for quiet, dependable airflow and improved indoor comfort.

Features include:

• Constant airflow performance
• Durable aluminum indoor coil
• Easy maintenance access
• Universal compatibility with 24VAC thermostats
• Compatible with TCL RS485 wired controllers
• Flexible installation options

These features help maximize indoor comfort while maintaining efficient airflow throughout your home or commercial space.

Environmentally Friendly R454B Refrigerant

The TCL Advantage Series utilizes R454B refrigerant, a next-generation refrigerant with a lower Global Warming Potential (GWP) than previous refrigerants. R454B improves overall HVAC efficiency while supporting environmentally responsible heating and cooling installations.

Smart Design for Easy Installation & Reliable Operation

Designed for both HVAC contractors and homeowners, the Advantage Series includes numerous intelligent features that simplify installation and improve long-term reliability:

• Flexible installation
• Easy wiring access
• Intelligent anti-cold air function
• Intelligent defrost technology
• Multi-protection safety system
• Wide voltage operation
• Energy-saving operation
• Consistent airflow
• Four-way installation capability
• Quiet operation

These advanced technologies help maximize comfort while reducing maintenance requirements over the life of the system.

Ideal Applications

The TCL Advantage Series 3 Ton Heat Pump System is ideal for:

• Single-family homes
• Large townhouses
• Open-concept homes
• Residential HVAC replacement projects
• New home construction
• Offices
• Retail stores
• Professional buildings
• Light commercial applications

Warranty Protection

The TCL Advantage Series includes:

• 10-Year Limited Parts Warranty
• 10-Year Limited Compressor Warranty

The system is also AHRI Certified, ETL Listed, and compatible with ENERGY STAR® Cold Climate Certified configurations, providing independently verified performance, quality, and reliability.

Key Features

• Complete 3 Ton (36,000 BTU) Central Heat Pump System
• Indoor Model: H36AHH18XAE
• Outdoor Model: H36TDH18XAC
• Up to 19 SEER2, 10 EER2, 9 HSPF2
• Variable-Speed Inverter Compressor
• ECM Variable-Speed Indoor Blower
• Environmentally Friendly R454B Refrigerant
• Cooling Operation: 5°F to 125°F (-15°C to 52°C)
• Heating Operation: -5°F to 80°F (-20°C to 27°C)
• Universal 24VAC Thermostat Compatible
• TCL RS485 Wired Controller Compatible
• Intelligent Defrost & Anti-Cold Air Functions
• Quiet Operation
• AHRI Certified
• ETL Listed
• 10-Year Parts Warranty
• 10-Year Compressor Warranty
