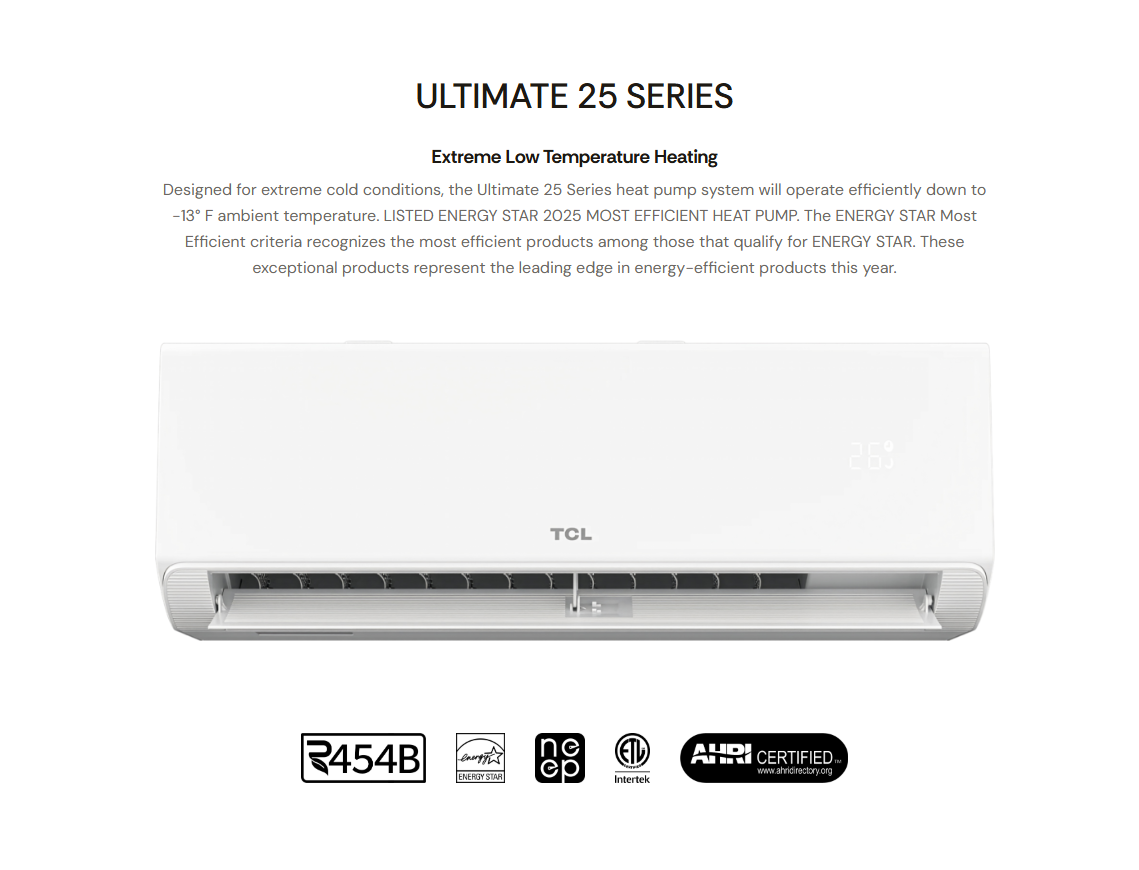

TCL Ultimate 25 Series 24,000 BTU Ductless Mini Split Heat Pump

The TCL Ultimate 25 Series 24,000 BTU Ductless Mini Split Heat Pump is TCL’s premium high-performance heating and cooling solution, designed to deliver exceptional comfort, industry-leading energy efficiency, and reliable operation in the harshest climates. Featuring up to 23 SEER2 cooling efficiency and up to 10 HSPF2 heating efficiency, this advanced inverter heat pump provides powerful year-round performance while helping reduce energy consumption and lower utility costs.

Engineered specifically for cold-weather applications, the 24,000 BTU Ultimate 25 operates in outdoor temperatures from 5°F to 131°F (-15°C to 55°C) for cooling and -22°F to 86°F (-30°C to 30°C) for heating. Even in extreme winter conditions, the system continues to provide dependable heating, making it an excellent choice for northern climates and regions that experience prolonged freezing temperatures.

The 24,000 BTU model operates on 208-230V / 1 Phase / 60Hz and is ideal for large living rooms, open-concept homes, basements, garages, retail stores, restaurants, professional offices, workshops, additions, and other larger residential or light commercial applications. Its advanced DC inverter compressor continuously adjusts output to match the heating or cooling demand, delivering precise temperature control, quieter operation, and maximum energy efficiency.

Recognized among the most efficient heat pumps available, the Ultimate 25 Series is ENERGY STAR® Most Efficient 2025, ENERGY STAR® Certified, and NEEP Listed for Cold Climate Performance, making it eligible for various regional energy efficiency rebate and incentive programs where available.

Built-in Wi-Fi connectivity allows complete remote control through the TCL Home App, while compatibility with Amazon Alexa and Google Home provides convenient hands-free voice control and smart home integration.

TCL’s exclusive Gentle Breeze Airflow Technology distributes conditioned air evenly throughout the room while minimizing direct drafts for enhanced indoor comfort. The integrated Deep Self-Cleaning & Sterilization system automatically removes dust, dirt, moisture, and contaminants from the indoor coil through a multi-stage cleaning process, helping improve indoor air quality, maintain peak operating efficiency, reduce maintenance requirements, and extend equipment lifespan.

Designed for quiet performance, the Ultimate 25 Series continuously adjusts compressor and fan speeds to maintain stable indoor temperatures while minimizing operating noise. Whether installed in a large home, office, or commercial space, it delivers premium comfort with exceptional efficiency throughout every season.

Key Features

• 24,000 BTU Heating & Cooling Capacity
• Up to 23 SEER2 Cooling Efficiency
• Up to 10 HSPF2 Heating Efficiency
• 208-230V / 1 Phase / 60Hz
• Cooling Operation: 5°F to 131°F (-15°C to 55°C)
• Heating Operation: -22°F to 86°F (-30°C to 30°C)
• Advanced DC Inverter Heat Pump Technology
• ENERGY STAR® Certified
• ENERGY STAR® Most Efficient 2025
• NEEP Listed for Cold Climate Performance
• Built-in Wi-Fi with TCL Home App
• Amazon Alexa & Google Home Compatible
• Gentle Breeze Airflow Technology
• Deep Self-Cleaning & Sterilization
• Quiet Indoor Operation
• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• 10-Year Limited Warranty with Product Registration Within 60 Days
