TCL Multi Match Series 18000 BTU Dual-Zone
TCL Multi Match Series 18,000 BTU Dual-Zone Heat Pump Condensing Unit
Outdoor Model: H18FMH22XPC
The TCL Multi Match Series 18,000 BTU Dual-Zone Heat Pump Condensing Unit is designed to provide energy-efficient heating and cooling for up to two independently controlled indoor units, making it ideal for homes, apartments, offices, and light commercial applications. Operating on 208-230V / 1 Phase / 60Hz, this high-performance outdoor unit features Full DC Inverter Technology, up to 24 SEER2, 13 EER2, and 10 HSPF2 efficiency, delivering exceptional comfort and lower energy costs. Designed to operate in outdoor temperatures from 5°F to 133°F for cooling and -13°F to 86°F for heating, it includes a base pan heater, Smart Defrost, Refrigerant Leak Protection, and compatibility with Hi Wall, Ceiling Cassette, Slim Duct, and Floor & Ceiling indoor units. The system is ENERGY STAR® Certified, ENERGY STAR® Cold Climate Certified, uses environmentally friendly R454B refrigerant, and is backed by a 5-Year Parts, 7-Year Compressor, and 10-Year Limited Warranty with product registration.
TCL Multi Match Series 18,000 BTU Dual-Zone Heat Pump Condensing Unit
Outdoor Model: H18FMH22XPC
Capacity: 18,000 BTU
Supports: 2 Indoor Units (Dual Zone)
The TCL Multi Match Series 18,000 BTU Dual-Zone Heat Pump Condensing Unit (H18FMH22XPC) is a high-efficiency multi-zone HVAC solution designed to provide independent heating and cooling for two separate rooms or zones using a single outdoor unit. Ideal for homes, apartments, condominiums, offices, and light commercial applications, this inverter-driven system delivers exceptional comfort, quiet operation, and reduced energy consumption while eliminating the need for multiple outdoor condensers.
Built with Full DC Inverter Technology, the H18FMH22XPC continuously adjusts compressor and fan speed to match the heating and cooling demand of each connected indoor unit. This intelligent operation provides consistent temperatures, lower energy bills, quieter performance, improved humidity control, and extended equipment life. The system is compatible with TCL Hi Wall, Ceiling Cassette, Slim Duct, and Floor & Ceiling indoor units, allowing contractors and homeowners to create the ideal HVAC solution for virtually any installation.
Designed for Year-Round Performance
The TCL Multi Match Series is engineered for reliable operation in demanding climates.
Cooling Operating Range
- 5°F to 133°F (-15°C to 55°C)
Heating Operating Range
- -13°F to 86°F (-25°C to 30°C)
The built-in base pan heater and Smart Defrost technology help maintain dependable heating performance during cold winter conditions while ensuring efficient cooling throughout the hottest summer months.
High-Efficiency Performance
The H18FMH22XPC delivers outstanding energy efficiency while providing independent comfort control in two different rooms.

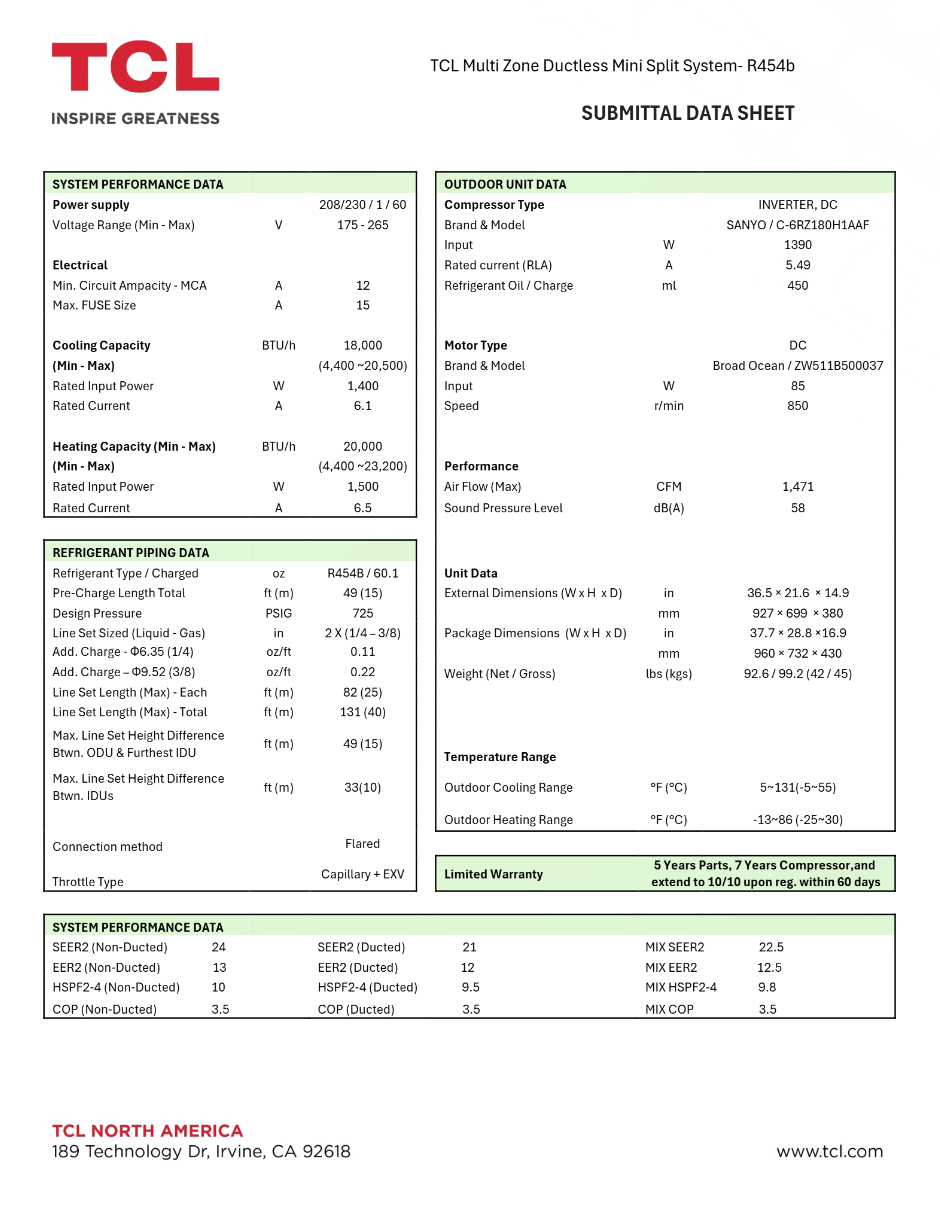

Performance Highlights (Non-Ducted Indoor Units)
- Cooling Capacity: 18,000 BTU
- Capacity Range: 4,400 – 20,500 BTU
- Heating Capacity: 20,000 BTU
- Heating Capacity Range: 4,400 – 23,200 BTU
- Up to 24 SEER2
- 13 EER2
- 10 HSPF2
- ENERGY STAR® Certified
- ENERGY STAR® Cold Climate Certified
Flexible Multi-Zone Installation
The 18,000 BTU outdoor unit supports two independently controlled indoor units, allowing each room to maintain its own temperature and operating mode.

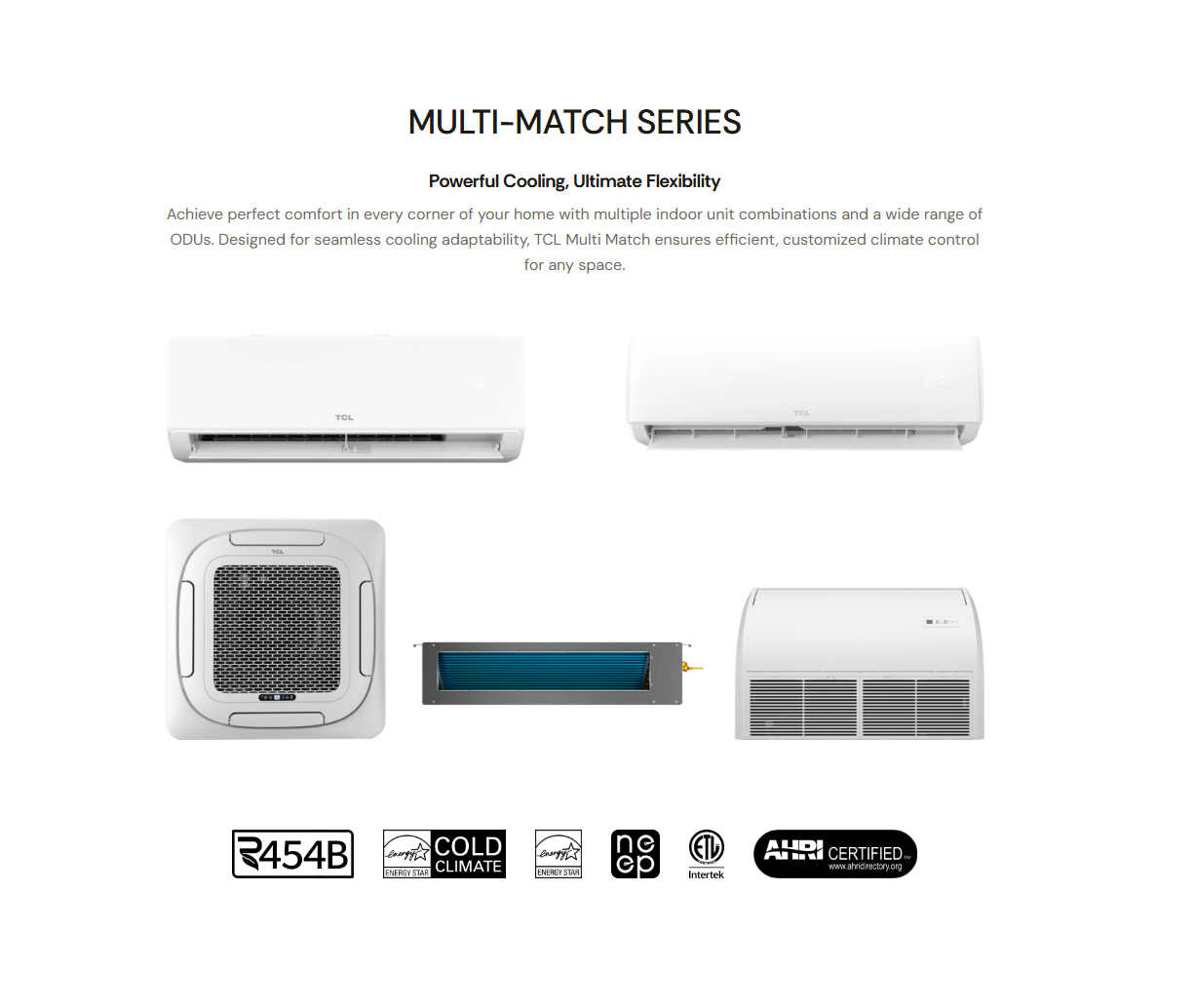

Compatible indoor unit styles include:
- Hi Wall Mounted
- Slim Duct
- Ceiling Cassette
- Floor & Ceiling
This flexibility makes the system ideal for retrofit projects, renovations, additions, and new construction where customized comfort is required.
Advanced Comfort & Protection Features
The TCL Multi Match Series includes numerous intelligent technologies designed to maximize efficiency and long-term reliability, including:
- Full DC Inverter Compressor
- Smart Defrost Technology
- Refrigerant Leak Protection
- Built-in Base Pan Heater
- Voltage Protection
- Overheating Protection
- Overcurrent Protection
- Temperature Protection
- Phase Loss Protection
- Hotel Mode Compatibility (optional)
- Environmentally Friendly R454B Refrigerant
Ideal Applications
The TCL Multi Match 18,000 BTU Dual-Zone System is ideal for:
- Homes
- Apartments
- Condominiums
- Townhouses
- Room Additions
- Home Offices
- Small Businesses
- Retail Stores
- Professional Offices
- Renovation Projects
Warranty Protection
Every TCL Multi Match Series outdoor unit includes:
- 5-Year Limited Parts Warranty
- 7-Year Limited Compressor Warranty
- 10-Year Limited Warranty with Product Registration Within 60 Days of Installation
Key Features
- 18,000 BTU Multi-Zone Heat Pump Condensing Unit
- Outdoor Model: H18FMH22XPC
- Supports 2 Indoor Units
- 208–230V / 1 Phase / 60Hz
- Up to 24 SEER2, 13 EER2, 10 HSPF2
- Cooling Operation: 5°F to 133°F (-15°C to 55°C)
- Heating Operation: -13°F to 86°F (-25°C to 30°C)
- Full DC Inverter Technology
- Smart Defrost
- Base Pan Heater
- Refrigerant Leak Protection
- Compatible with Hi Wall, Slim Duct, Ceiling Cassette & Floor/Ceiling Indoor Units
- ENERGY STAR® Certified
- ENERGY STAR® Cold Climate Certified
- Uses R454B Refrigerant
- 5-Year Parts Warranty
- 7-Year Compressor Warranty
- 10-Year Limited Warranty with Registration
