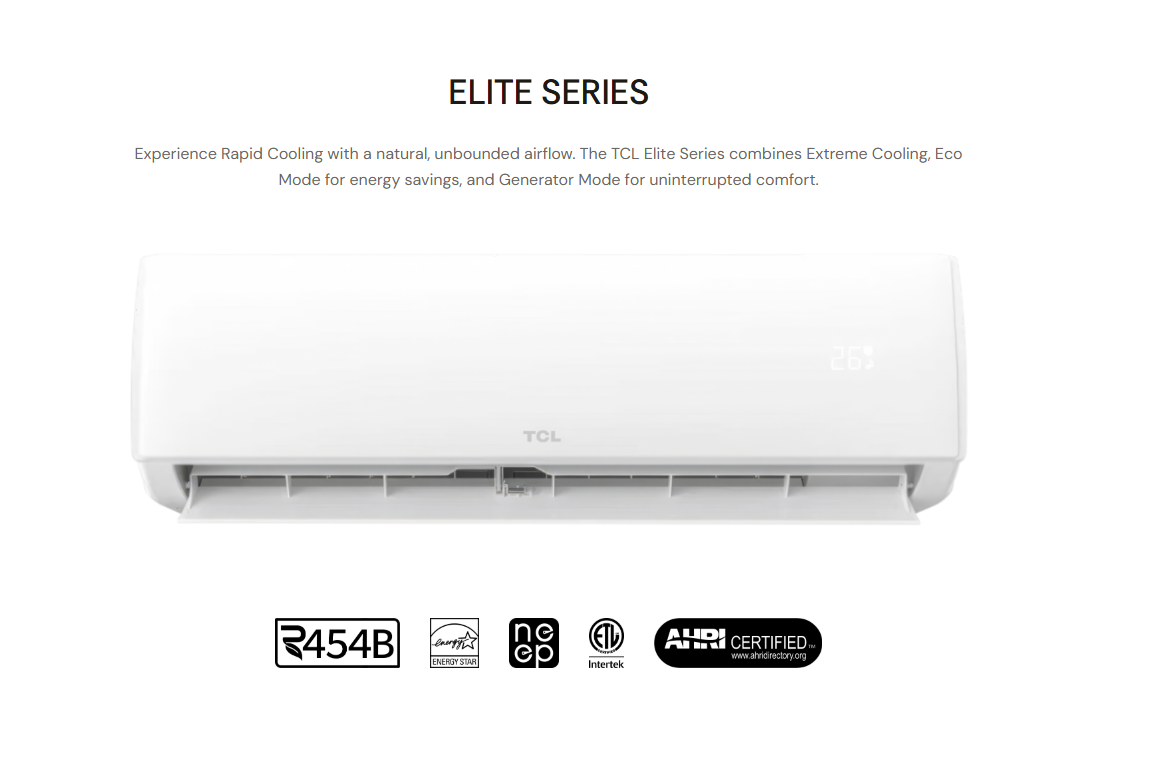

TCL Elite Series 9,000 BTU 115V Ductless Mini Split Heat Pump

Indoor Model: H09SEH19BAE | Outdoor Model: H09SEH19BAC

The TCL Elite Series 9,000 BTU 115V Ductless Mini Split Heat Pump is a high-efficiency single-zone heating and cooling system designed to provide reliable year-round comfort for bedrooms, apartments, condominiums, home offices, additions, garages, and other small residential spaces. Featuring advanced AI Inverter Technology, built-in Wi-Fi connectivity, and environmentally friendly R454B refrigerant, this compact mini split system delivers outstanding energy efficiency, quiet operation, and precise temperature control while helping reduce monthly energy costs.

Operating on a convenient 115V / 1 Phase / 60Hz power supply, this model is an excellent solution for homes where a standard 120V electrical circuit is preferred, making installation simple for many residential applications. With up to 19 SEER2 cooling efficiency, 11.7 EER2, and 9.5 HSPF2, the TCL Elite Series provides an excellent balance of comfort, efficiency, and long-term reliability.

Built for Year-Round Performance

The TCL Elite Series is engineered to provide dependable comfort during both hot summers and cold winters.

Cooling Operating Range

• 5°F to 122°F (-15°C to 50°C)

Heating Operating Range

• -4°F to 86°F (-20°C to 30°C)

Designed to operate efficiently in a wide range of climates, the Elite Series delivers reliable cooling during hot weather and dependable heating even in below-freezing outdoor temperatures.

High-Efficiency AI Inverter Technology

The Elite Series utilizes an advanced rotary inverter compressor that continuously adjusts compressor speed based on indoor comfort requirements. Rather than constantly turning on and off, the inverter technology automatically matches system output to the room’s heating or cooling demand, providing:

• Lower energy consumption
• Reduced utility costs
• More consistent indoor temperatures
• Quieter operation
• Improved humidity control
• Longer equipment life

Performance specifications include:

• 9,000 BTU Cooling Capacity
• 10,000 BTU Heating Capacity at 47°F
• 5,800 BTU Heating Capacity at 17°F
• 7,300 BTU Maximum Heating Capacity at 5°F
• Up to 19 SEER2
• 11.7 EER2
• 9.5 HSPF2

Rapid Cooling & Fast Heating

The TCL Elite Series is designed to quickly bring your room to a comfortable temperature. Its high-frequency inverter compressor can deliver cool air down to 65°F in approximately 30 seconds and warm air up to 104°F in approximately 60 seconds, helping you enjoy comfort faster after startup.

Smart Wi-Fi & Voice Control

Control your comfort from anywhere using the TCL Home App. The Elite Series includes built-in Wi-Fi and supports voice control through Amazon Alexa and Google Assistant, allowing you to adjust temperature settings, operating modes, schedules, and timers directly from your smartphone or smart home device.

Smart Air Flow & iFEEL Comfort

TCL’s Smart Air Flow technology directs cool air upward for a gentle shower-style cooling effect while directing warm air downward to create a blanket-like heating pattern. Combined with iFEEL Technology, which uses the temperature sensor built into the remote control, the system automatically adjusts operation based on the temperature where you are located, providing more accurate and comfortable climate control.

Cleaner, Healthier Indoor Air

The Elite Series includes several advanced comfort and maintenance features to improve indoor air quality and simplify ownership, including:

• Deep Self-Cleaning
• Healthy Filter
• Self-Diagnosis
• Filter Reminder
• Sleep Mode
• ECO Mode
• Turbo Cooling & Heating
• Auto Restart

These intelligent features help maintain peak system efficiency while reducing maintenance requirements and improving overall comfort.

Ideal Applications

The TCL Elite Series 9,000 BTU 115V Mini Split Heat Pump is ideal for:

• Bedrooms
• Home Offices
• Apartments
• Condominiums
• Small Living Rooms
• Garages
• Sunrooms
• Home Additions
• Cabins
• Small Retail Spaces

Warranty Protection

Every TCL Elite Series system includes:

• 5-Year Parts Limited Warranty
• 7-Year Compressor Limited Warranty
• 10-Year Parts & Compressor Limited Warranty with Product Registration Within 60 Days of Installation

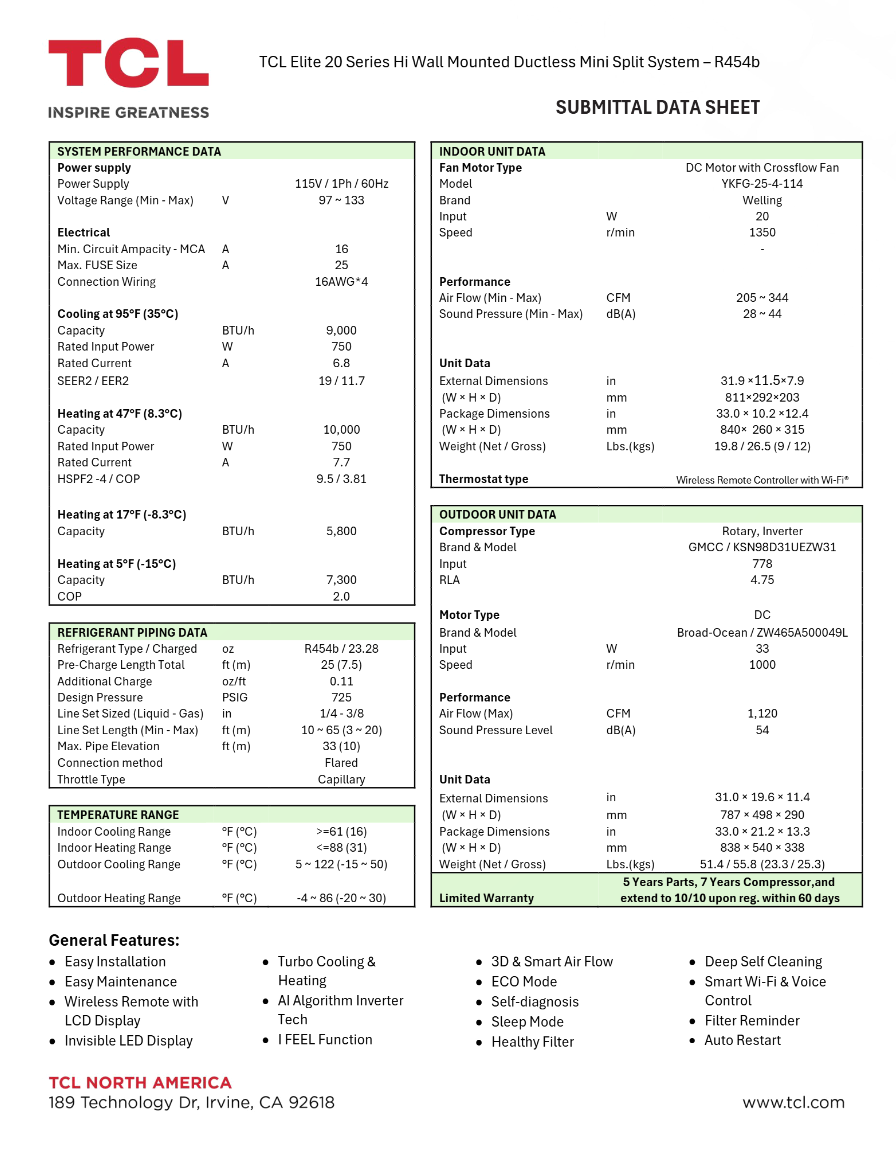

Key Features

• 9,000 BTU Single-Zone Heat Pump
• Indoor Model: H09SEH19BAE
• Outdoor Model: H09SEH19BAC
• 115V / 1 Phase / 60Hz
• Up to 19 SEER2, 11.7 EER2, 9.5 HSPF2
• Cooling Operation: 5°F to 122°F (-15°C to 50°C)
• Heating Operation: -4°F to 86°F (-20°C to 30°C)
• AI Inverter Technology
• Built-in Wi-Fi
• Amazon Alexa & Google Assistant Compatible
• Smart Air Flow
• iFEEL Temperature Sensor
• Turbo Cooling & Heating
• Deep Self-Cleaning
• Healthy Filter
• ECO Mode
• Self-Diagnosis
• Auto Restart
• Environmentally Friendly R454B Refrigerant
• AHRI Certified
• ENERGY STAR® Certified
• NEEP Listed
• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• 10-Year Limited Warranty with Registration
