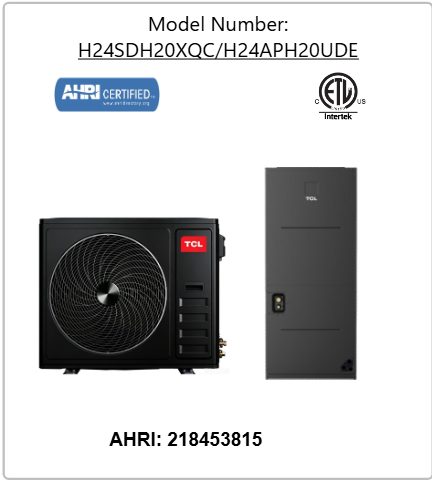

TCL Apex XS Series 2 Ton (24,000 BTU) Unitary Heat Pump System

The TCL Apex XS Series 2 Ton (24,000 BTU) Unitary Heat Pump System delivers dependable, energy-efficient heating and cooling for residential homes and light commercial applications. Combining a high-efficiency variable-speed inverter outdoor heat pump with a matched air handler, this complete HVAC system provides precise temperature control, quiet operation, and exceptional year-round comfort while helping reduce energy consumption and operating costs. With up to 19 SEER2 efficiency, the Apex XS Series is designed to maximize performance without sacrificing energy savings.

Built for demanding climates, the 2 Ton Apex XS Series operates in outdoor temperatures from 5°F to 131°F (-15°C to 55°C) for cooling and -22°F to 80°F (-30°C to 27°C) for heating. Engineered for cold-weather performance, it delivers reliable heating even during harsh winter conditions while maintaining powerful cooling throughout the hottest summer months.

The 2 Ton (24,000 BTU) model is ideal for smaller homes, townhouses, condominiums, apartments, offices, and residential HVAC replacement projects. Operating on 208-230V / 1 Phase / 60Hz, the advanced variable-speed inverter compressor continuously adjusts system output to match heating and cooling demand, improving indoor comfort while reducing energy consumption, operating noise, and temperature fluctuations.

The matched Apex air handler is engineered for dependable airflow and long-term performance. Featuring a durable aluminum indoor coil, ECM blower motor, and constant airflow operation up to 0.80 in. w.g. external static pressure, the system maintains consistent comfort throughout the home while improving overall HVAC efficiency. The service-friendly design also simplifies installation and routine maintenance for HVAC professionals.

The Apex XS Series utilizes environmentally friendly R32 refrigerant, a next-generation refrigerant with a lower Global Warming Potential (GWP) than many previous refrigerants. R32 helps improve overall system efficiency while supporting more sustainable HVAC installations.

Designed with contractors and homeowners in mind, the Apex XS Series offers practical installation features, reliable performance, and long-term durability. Whether installed in a new construction project or replacing an existing central heating and cooling system, it provides an efficient, dependable solution for year-round indoor comfort.

The TCL Apex XS Series 2 Ton Heat Pump System is AHRI Certified and ETL Listed, providing verified performance and quality you can trust.

Key Features

• 2 Ton (24,000 BTU) Heating & Cooling Capacity
• Up to 19 SEER2 Energy Efficiency
• 208-230V / 1 Phase / 60Hz
• Cooling Operation: 5°F to 131°F (-15°C to 55°C)
• Heating Operation: -22°F to 80°F (-30°C to 27°C)
• Variable-Speed Inverter Compressor Technology
• Matched High-Efficiency Air Handler
• Constant Airflow up to 0.80 in. w.g.
• Durable Aluminum Indoor Coil
• ECM Variable-Speed Blower Motor
• Environmentally Friendly R32 Refrigerant
• Designed for Easy Installation & Maintenance
• AHRI Certified Performance
• ETL Listed
