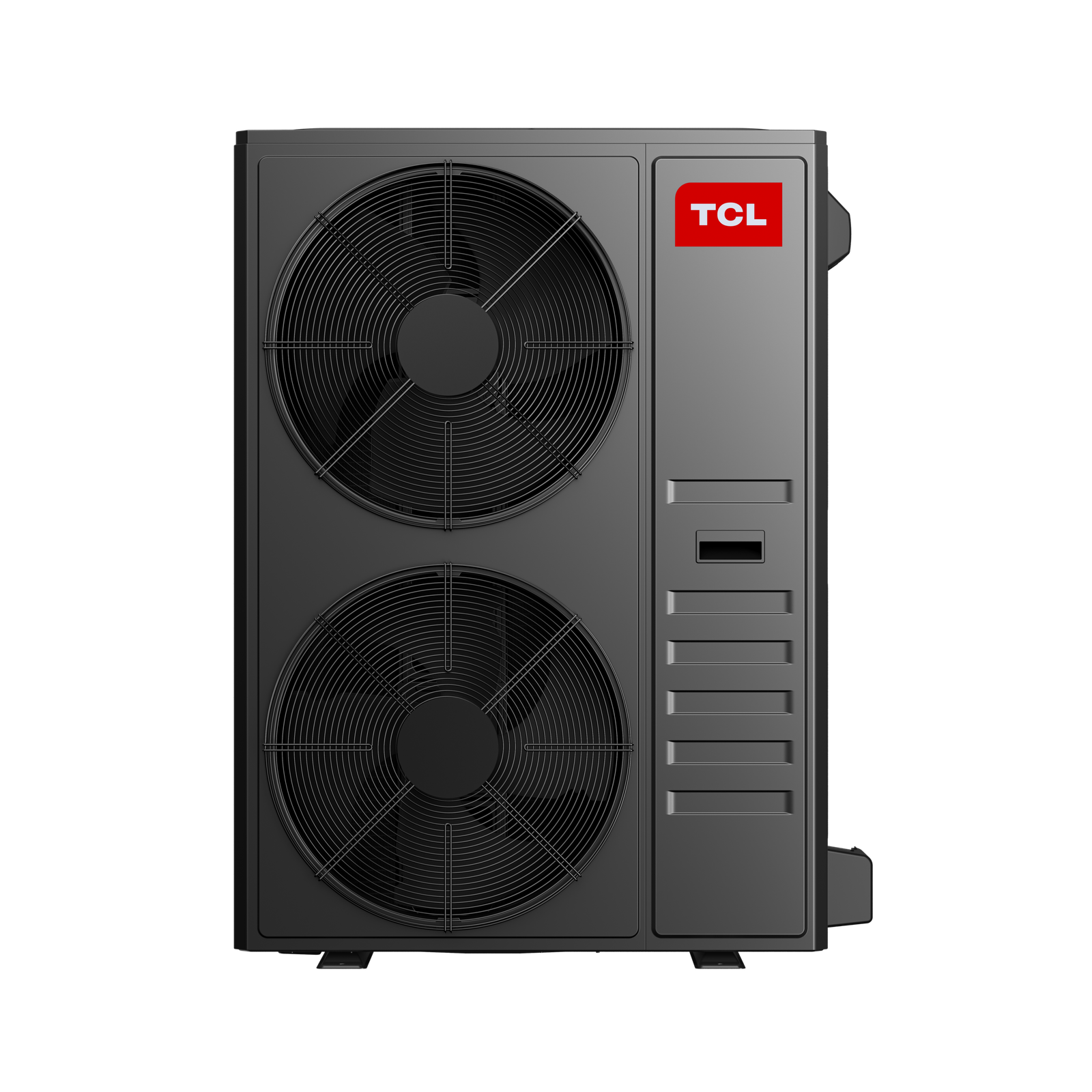

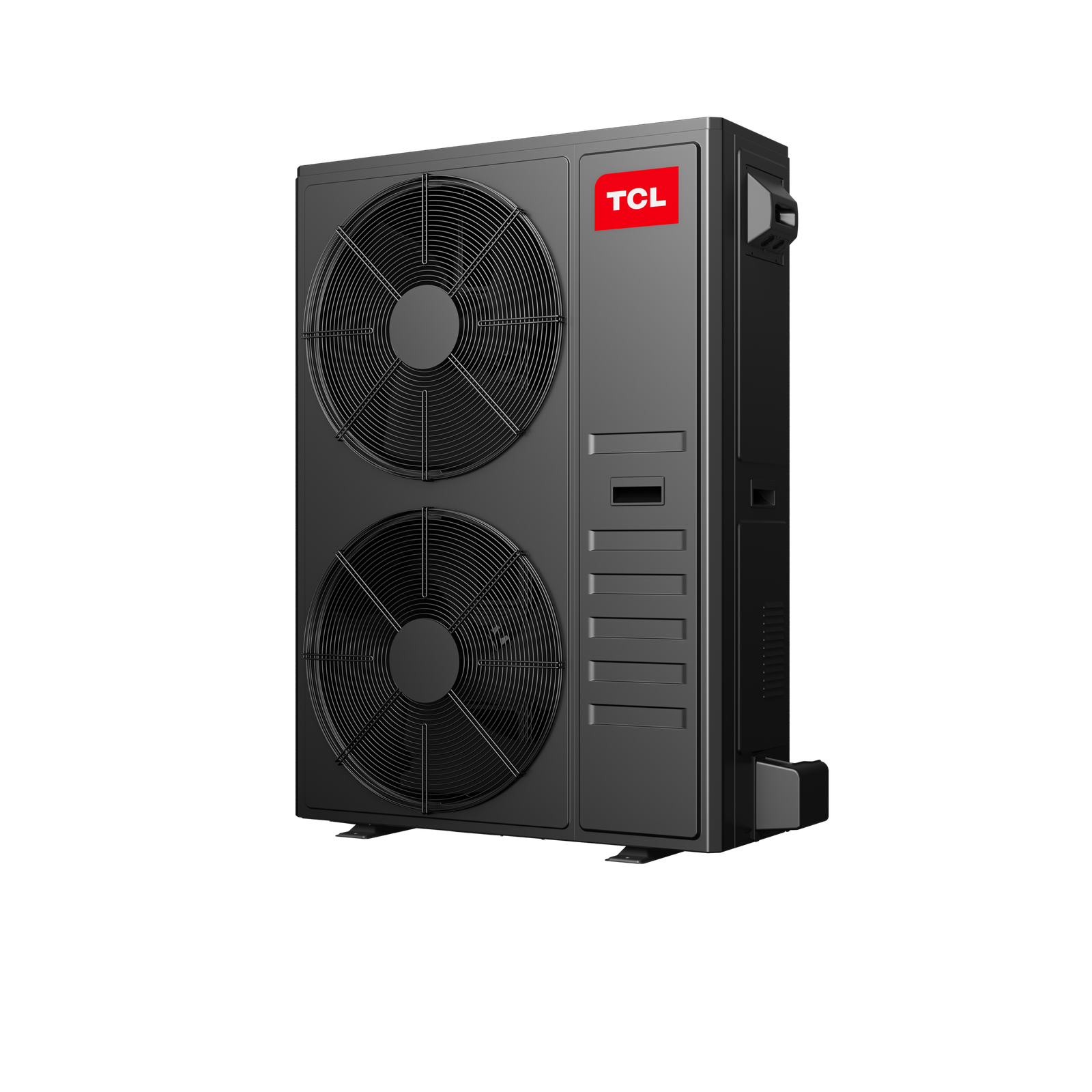

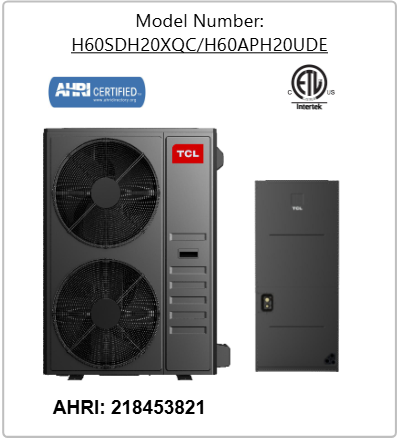

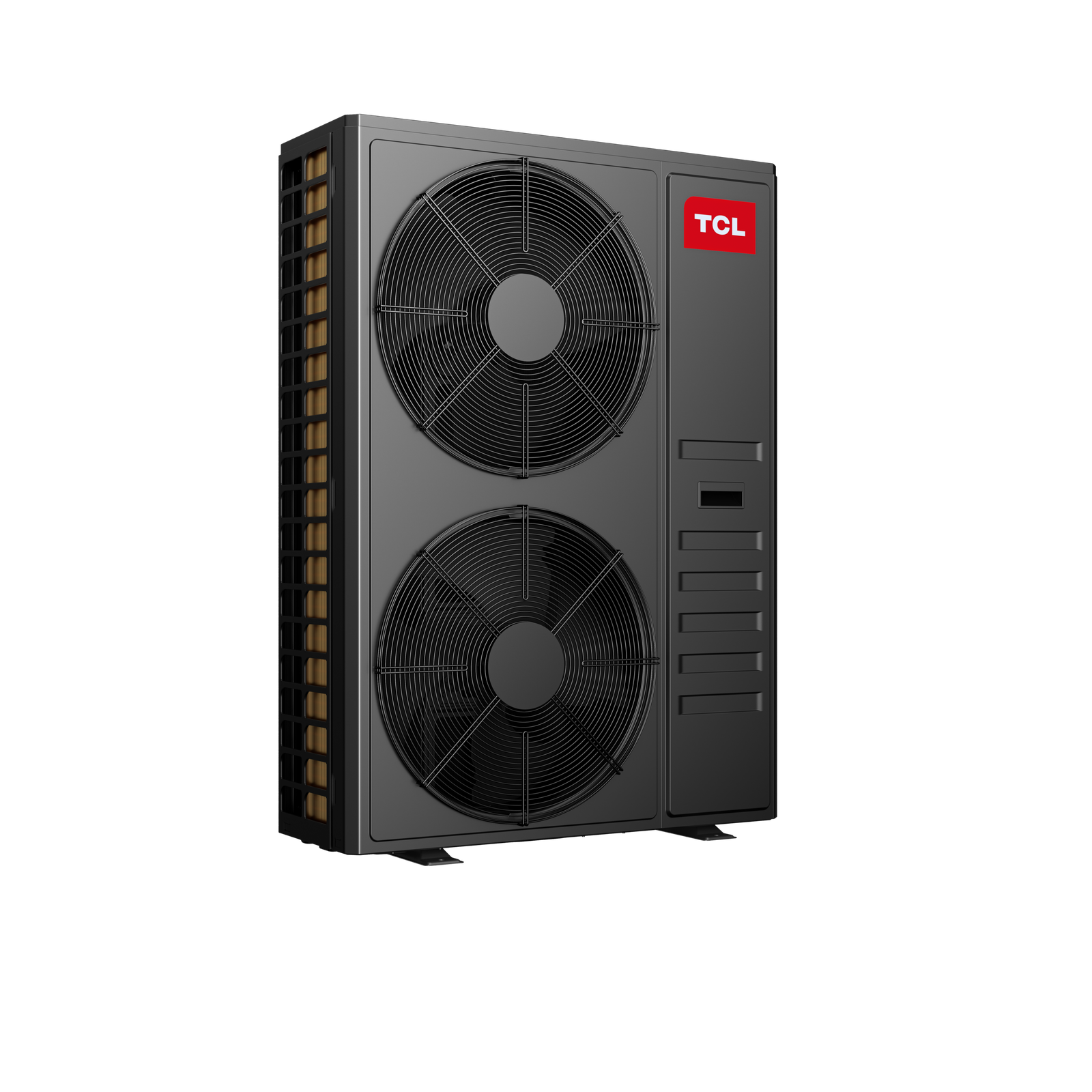

TCL Apex XS Series 5 Ton (60,000 BTU) Unitary Heat Pump System

The TCL Apex XS Series 5 Ton (60,000 BTU) Unitary Heat Pump System is designed to deliver maximum heating and cooling performance for large residential homes, multi-zone living spaces, and light commercial applications. Combining a high-efficiency variable-speed inverter outdoor heat pump with a matched air handler, this complete HVAC solution provides exceptional year-round comfort, quiet operation, and reduced energy consumption. With up to 17 SEER2 efficiency, the Apex XS Series offers an ideal balance of performance, reliability, and long-term energy savings.

Built for demanding climates, the 5 Ton Apex XS Series operates in outdoor temperatures from 5°F to 131°F (-15°C to 55°C) for cooling and -22°F to 80°F (-30°C to 27°C) for heating. Designed to maintain reliable heating performance in cold winter conditions while delivering powerful cooling during extreme summer temperatures, this system provides dependable comfort throughout every season.

The 5 Ton (60,000 BTU) model operates on 208-230V / 1 Phase / 60Hz and is ideal for large homes, custom residences, multi-level buildings, offices, retail stores, restaurants, commercial facilities, and other applications requiring high-capacity heating and cooling. The advanced variable-speed inverter compressor automatically adjusts output to match indoor comfort demands, improving temperature stability, reducing operating noise, enhancing humidity control, and lowering energy costs.

The matched Apex air handler is engineered for maximum airflow and dependable long-term performance. Featuring a durable aluminum indoor coil, ECM variable-speed blower motor, and constant airflow operation up to 0.80 in. w.g. external static pressure, the system provides balanced air distribution and consistent comfort throughout larger buildings while maximizing HVAC efficiency. Its service-friendly design also simplifies installation and routine maintenance for HVAC professionals.

The Apex XS Series utilizes environmentally friendly R32 refrigerant, a next-generation refrigerant with a lower Global Warming Potential (GWP) than many traditional refrigerants. R32 helps improve system efficiency while supporting more environmentally responsible HVAC installations.

Designed for homeowners, builders, and HVAC contractors looking for dependable high-capacity performance, the Apex XS Series offers reliable operation, simplified installation, and long-lasting durability. Whether installed in new construction or replacing an existing central HVAC system, it delivers efficient heating and cooling for demanding residential and light commercial applications.

The TCL Apex XS Series 5 Ton Heat Pump System is AHRI Certified and ETL Listed, providing independently verified performance, safety, and quality you can trust.

Key Features

• 5 Ton (60,000 BTU) Heating & Cooling Capacity
• Up to 17 SEER2 Energy Efficiency
• 208-230V / 1 Phase / 60Hz
• Cooling Operation: 5°F to 131°F (-15°C to 55°C)
• Heating Operation: -22°F to 80°F (-30°C to 27°C)
• Variable-Speed Inverter Compressor Technology
• Matched High-Efficiency Air Handler
• Constant Airflow up to 0.80 in. w.g.
• Durable Aluminum Indoor Coil
• ECM Variable-Speed Blower Motor
• Environmentally Friendly R32 Refrigerant
• Designed for Easy Installation & Maintenance
• AHRI Certified Performance
• ETL Listed
