Low Profile Cooler Evaporator DL15 – Air Defrost – 10236 BTU/h – 115V / 208-230V 60hz – Replacement for KLP211MA / TPLP211MA / LSA-1002 / BEL0095AS6ACAB0000

Upgrade your walk-in cooler with the DL-15 Low Profile Evaporator, a high-efficiency air cooler engineered for medium-temperature refrigeration applications.

If you are searching for a Low Profile Cooler Evaporator DL15 – Air Defrost – 10236 BTU/h – 115V / 208-230V 60hz that offers both reliability and energy efficiency, this unit is designed for commercial performance.

Designed for reliable commercial performance, the DL-15 delivers powerful airflow, energy-efficient operation, and direct compatibility with major OEM evaporator brands.

Perfect Match for 10,000–11,000 BTU/h Class Evaporators

The DL-15 is designed to replace evaporators in the 10,000–11,000 BTU/h capacity range, making it fully compatible with:

👉 DL-15 Capacity: 10,236 BTU/h
✔️ Falls directly within this range for a true performance match

Why Choose DL-15 Over Keeprite, Trenton, Refplus & Bohn?

• 💰 Lower cost compared to OEM brands
• ⚡ High airflow for fast temperature recovery
• 🔧 Direct-fit replacement for multiple major brands
• 🧊 Air defrost system – lower energy consumption
• 🛠️ Quick and easy installation
• 🧱 Heavy-duty commercial construction for long service life

Technical Specifications

Cooling Performance

• Cooling Capacity: 10,236 BTU/h (≈ 3.0 kW)
• Voltage: 115V / 208-230V 60Hz
• Application Range: +23°F to 68°F (-5°C to +20°C)
• Refrigerant Compatibility:
  • R404A
  • R448A
  • R449A
  • R452A
  • R134a
  • R22
  • R407C
  • R507

Defrost & Coil

• Defrost Type: Air Defrost
• Fin Spacing: 4.5 mm
• Coil Construction: Copper tube / aluminum fin

Fan & Airflow

• Fan Quantity: 2 Fans
• Fan Diameter: Ø350 mm
• Motor: 2 × 80W
• Air Flow: ≈ 6,200 m³/h

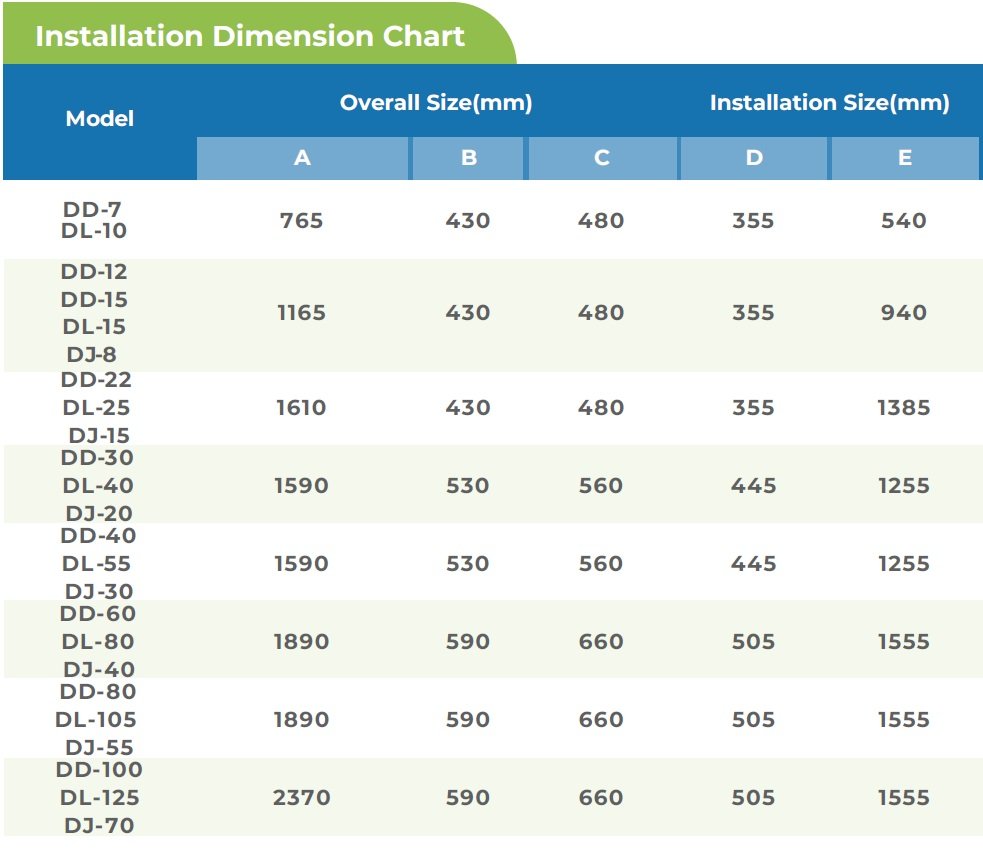

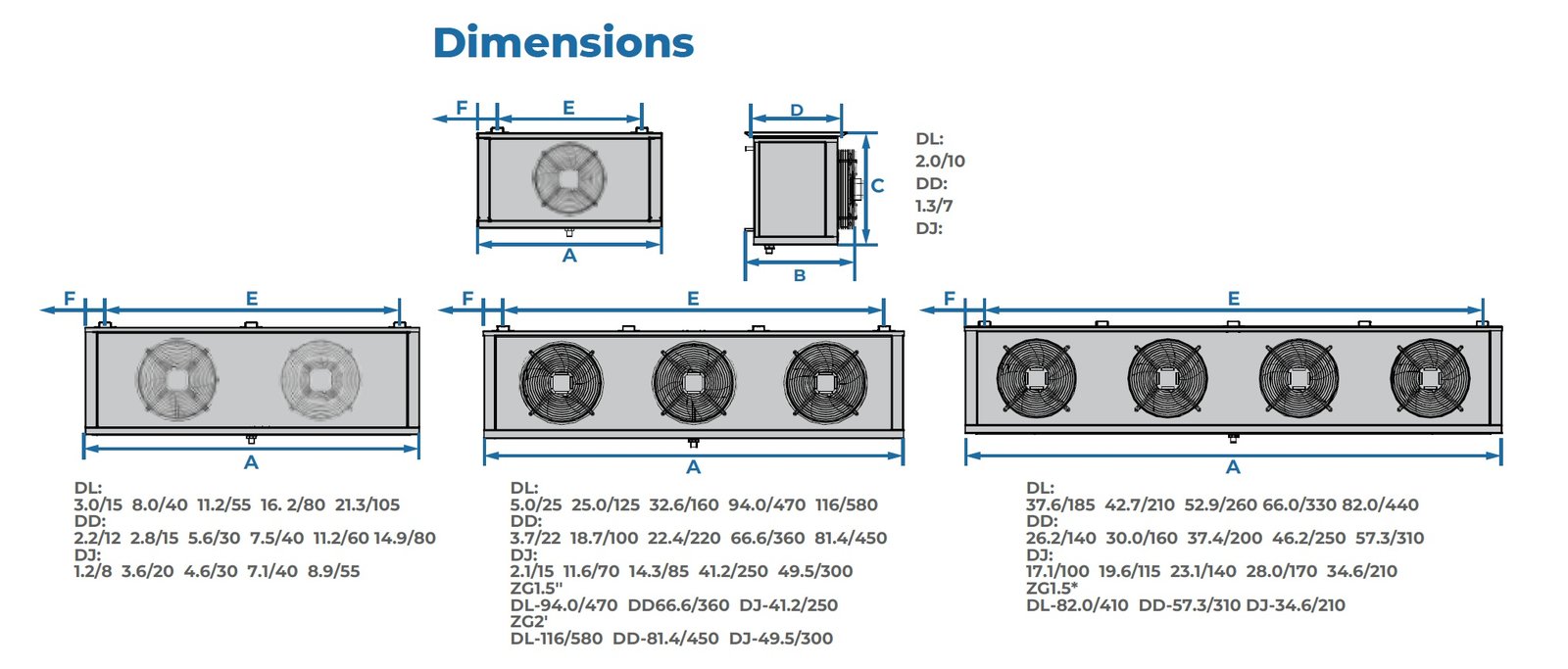

Dimensions

• Overall Size (mm):
  • Length (A): 1165
  • Depth (B): 430
  • Height (C): 480

Built for Commercial Refrigeration

The DL-15 features a high-efficiency evaporator coil that delivers excellent heat transfer and uniform cooling throughout the walk-in cooler. Its compact low-profile design is ideal for installations with limited ceiling space while maintaining strong airflow and dependable refrigeration performance. The corrosion-resistant powder-coated housing ensures durability in demanding commercial environments.

Applications

• Walk-in coolers
• Restaurants & commercial kitchens
• Convenience stores
• Beverage coolers
• Food storage rooms
• Refrigerated prep areas

Direct Replacement Cross Reference

This unit is commonly used as a replacement for:

• Keeprite KLP211MA
• Trenton TPLP211MA
• Refplus LSA-1002
• Bohn BEL0095AS6ACAB0000

Ideal for retrofits, repairs, and refrigeration system upgrades.
