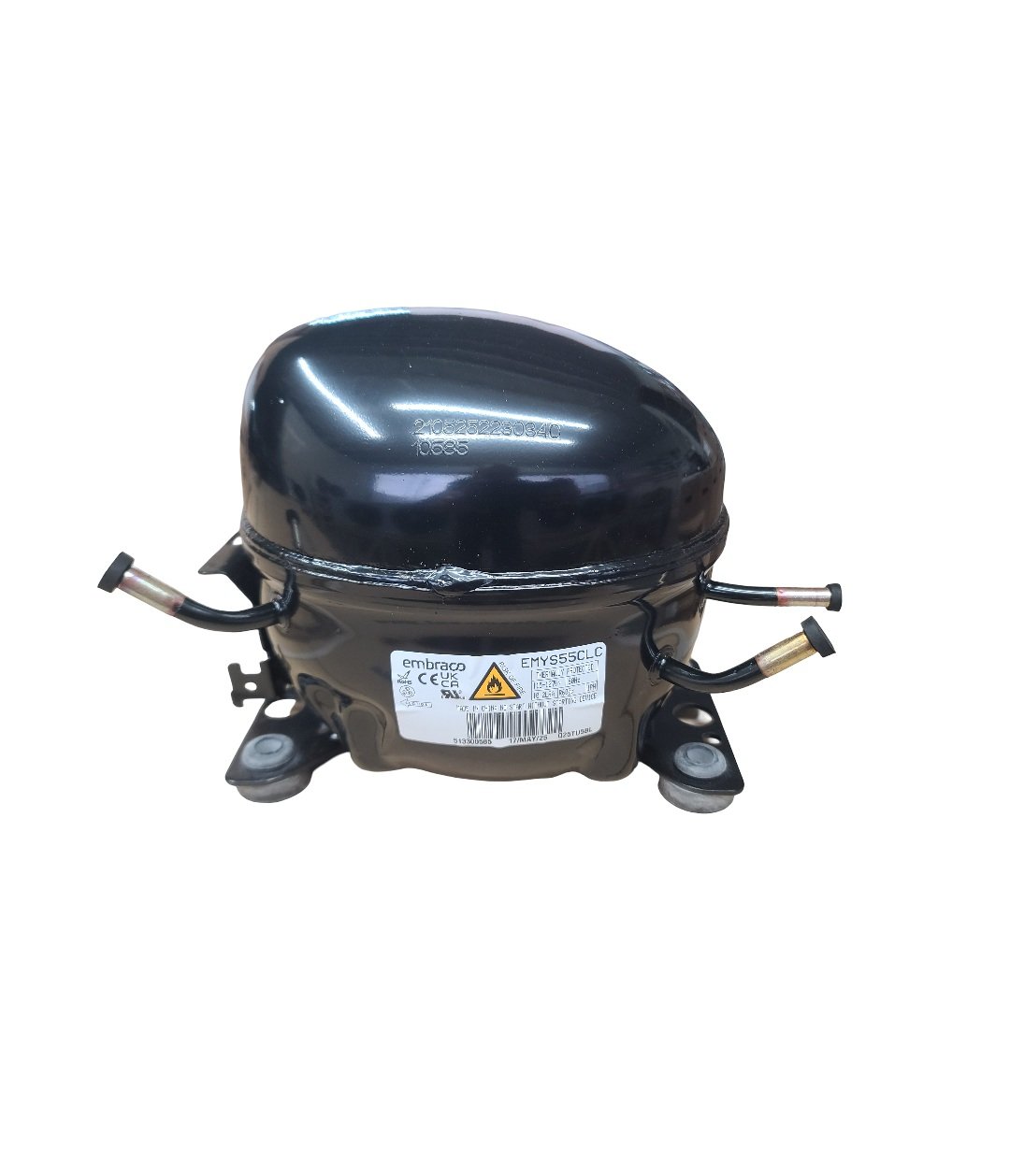

EMBRACO EM YS55CLC R600a 1/5 HP LBP 115V 60Hz

🧊 The Embraco EM YS55CLC R600a 1/5 HP LBP 115V 60Hz Compressor is a high-efficiency, eco-friendly refrigeration compressor engineered by Embraco for small commercial and residential systems. Designed for low back pressure applications, it offers excellent energy performance, quiet operation, and reliable cooling for compact units.

📘 Product Overview
The Embraco EM YS55CLC is a compact hermetic reciprocating compressor designed for low back pressure (LBP) systems using R600a (isobutane) refrigerant. This Embraco model, with its 1/5 HP and 115V 60Hz, delivers efficient cooling performance and long service life. Ideal for compact refrigerators, beverage coolers, and small display cases, this model provides consistent performance and low power consumption.

🔧 Technical Specifications
• Refrigerant: R600a (Isobutane)
• Horsepower: 1/5 HP (approx. 150W input)
• Cooling Capacity: ~512 BTU/h
• Voltage: 115V AC
• Frequency: 60Hz
• Motor Type: Single-phase induction
• Starting Method: PTC relay
• Oil Type: Ester oil, factory pre-charged
• Shell Type: Hermetically sealed steel housing
• Ambient Temperature Range: –10°C to +43°C
• Evaporating Temperature Range: –23°C to –10°C
• Displacement: 5.5 cm³
• Application: Low Back Pressure (LBP) systems

✅ Quality & Reliability
• Hermetic steel shell for durability and protection from contamination
• Built-in thermal protection prevents overheating and electrical damage
• Factory pre-charged with ester oil for R600a compatibility
• Tested under rigorous Embraco standards for long-term reliability, this model is specifically built for Embraco EM YS55CLC R600a 1/5 HP LBP 115V 60Hz use.

⚡ Efficiency
• Uses eco-friendly R600a refrigerant with low GWP
• Optimized design for high energy efficiency and reduced power draw
• Low noise and vibration for quiet operation
• Soft start technology minimizes mechanical wear, ensuring the endurance of Embraco’s R600a 1/5 HP LBP 115V 60Hz compressor.

🔗 System Compatibility
• Voltage: 115V AC
• Frequency: 60Hz
• Mounting: Standard base with grommets for universal fit
• Refrigerant: R600a (isobutane)
• Ideal for LBP refrigeration systems, the Embraco compressor showcases versatility.

🧊 Recommended Applications
• Compact refrigerators and freezers
• Beverage and wine coolers
• Under-counter chillers
• Small commercial display cases – all can benefit from the Embraco EM YS55CLC R600a 1/5 HP LBP 115V 60Hz specifications.
