Cooler Evaporator DL15 – Air Defrost – 10236 BTU/h – 115V 60hz – Replacement for KLP211MA / TPLP211MA

Cooler Evaporator DL-15 – Air Defrost – 10,236 BTU/h – 115V/60Hz

Replacement for KLP211MA / TPLP211MA

The DL-15 Air Cooler Evaporator is a high-efficiency unit designed for walk-in coolers and medium-temperature refrigeration applications. Built for reliability and consistent performance, this unit is ideal for fresh storage environments operating around -5°C to +20°C (23°F to 68°F).

Engineered with durable materials and optimized airflow, the DL series delivers fast temperature pull-down and uniform cooling, making it suitable for food storage, beverages, and general refrigeration needs.

---

Key Features

• Cooling Capacity: 10,236 BTU/h (≈ 3 kW)
• Air Defrost System (low-maintenance operation)
• Voltage: 115V / 60Hz
• Application Range: Medium temperature (coolers / fresh storage)
• Refrigerant Compatibility: R404A, R448, R449, R452, R134
• Fin Spacing: 4.5 mm
• Compact, space-saving design
• Corrosion-resistant coated housing
• High-efficiency copper tube & aluminum fin coil

---

Fan & Airflow

• Fan Quantity: 2
• Fan model: Weiguang UL certified
• Fan Diameter: Ø350 mm
• Fan Voltage: 115V / 60Hz
• Motor: 2 × 80W
• Air Flow: 2×3,100 m³/h

---

Performance

• Cooling Area: 10 m²
• Recommended Room Temp:
  • DL Series: -5°C to +20°C
• Capacity Rating Condition:
  • Evaporating Temp: -8°C
  • Room Temp: +10°C

---

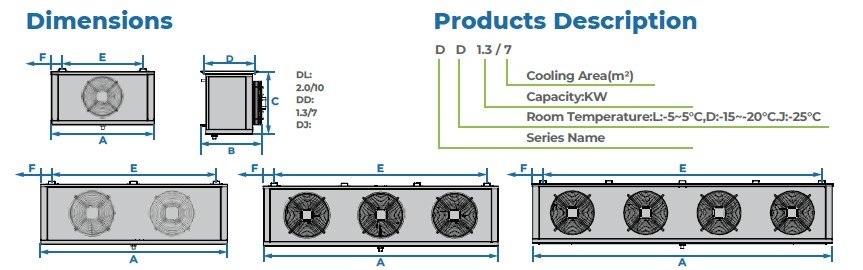

Dimensions

• Overall Size (mm):
  • A: 1165 mm
  • B: 430 mm
  • C: 480 mm
• Installation Size (mm):
  • D: 355 mm
  • E: 940 mm

---

Construction

• Powder-coated aluminum casing (anti-corrosion)
• Copper tubing with mechanically expanded aluminum fins
• Internal drainage system to prevent water accumulation
• Factory pressure-tested for leak-free operation

---

Applications

• Walk-in coolers
• Fresh food storage (produce, dairy, beverages)
• Commercial refrigeration systems
• Replacement for KLP211MA / TPLP211MA

---

Summary

The DL-10 evaporator is a dependable, compact cooling solution offering efficient heat exchange, quiet operation, and easy installation—perfect for replacing legacy units or upgrading medium-temperature refrigeration systems.
