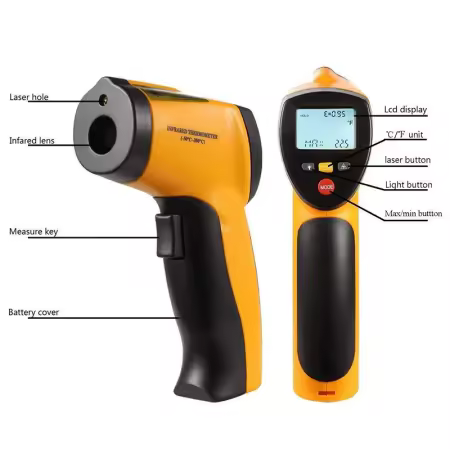

HT-826 Infrared Thermometer

HT-826 Infrared Thermometer

Display 3-1/2 digit (1999count) LCD with backlighting
Emissivity 0.95 fixed value
Field of View D/S=Approx.12:1 ratio(D=distance,S=spot)
(Has 90% encircled energy at the focal point)
Diode Laser
Output <1mW, Wavelength 630~675nm,class 2
(ll)
Laser product
IR Spectral response 6~14μm
Operating Temperature 0℃ ~ 50℃ (32°F ~ 122°F)
Relative Humidity 10%~90%RH Operating, <80%RH Storage
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Response time <1s
Power Supply 9V battery
Automatic Power Off 7 Seconds
Weight 130g
Dimensions 86mm / 46mm / 160mm
Model HT-826
Temperature Measurement Range Automatic
Resolution
Accuracy
-50°C ~ 550°C
-50°C ~ -20°C 0.1°C ±5℃
-20℃ ~ 550°C 1℃ ± 2% of reading
or ± 2℃
-58°F ~ 1022°F
-58°F ~ -4°F 0.1°F ±9°F
-4°F ~ 1022°F 1°F ± 2% of reading
