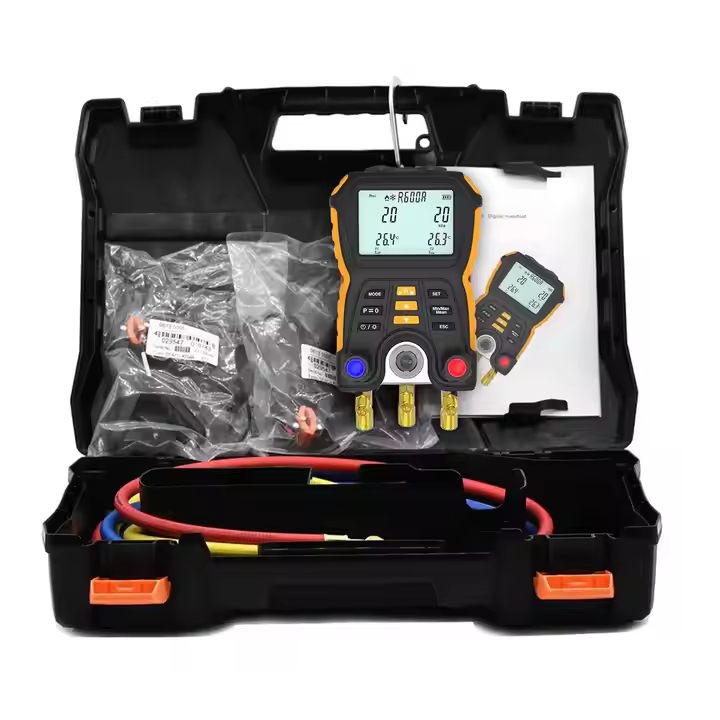

Digital Manifold HT-750

Digital Manifold HT-750

Pressure measuring range(relative pressure)
-100 to 6000Kpa/-0.1 to 6Mpa/-14.5 to 870psi / -1 to 60bar

Overload pressure 6500Kpa/6.5Mpa/940psi/65bar

Pressure accuracy ±0.5%FS
Pressure resolution 1Kpa, 0.01bar, 0.1psi, 0.001Mpa (0.01Mpa during
negative pressure)

Temperature measuring range -10-200℃/14-392℉

Temperature accuracy ± (1℃+1digit)

Temperature resolution 0.1℃/0.1℉

Optional refrigerants (83 kinds)
R11, R12, R123, R124, R125, R1270,R13, R134A, R14, R141b, R142b, R143A,
R152A, R170, R21, R218,R22, R227E, R23, R236E, R245C, R245, R290, R32,
R401A, R401b,R401C, R402A, R402b, R403A, R403b, R404A, R405A, R406A,
R407A,R407b, R407C, R407d, R407E, R408A, R409A, R409b, R41, R410A,R410b,
R411A, R411b, R412A, R413A, R414A, R414b, R415A, R415b,R416A, R417A,
R418A, R419A, R420A, R421A, R421b, R422A, R422b,R422C, R422d, R423A,
R424A, R425A, R426A, R427A, R428A, R50,R500, R501, R502, R503, R504, R507A,
R508A, R508b, R509A, R600,R600A, R717
Operating temperature 0 to 45℃
Ambient humidity 10%RH to 90%RH
Power supply 4 AA batteries
Dimension 65 mm / 116 mm /204 mm
