Sikelan ADW57T6 R134a 1/4HP LBP 110-120V 50/60HZ Compressor

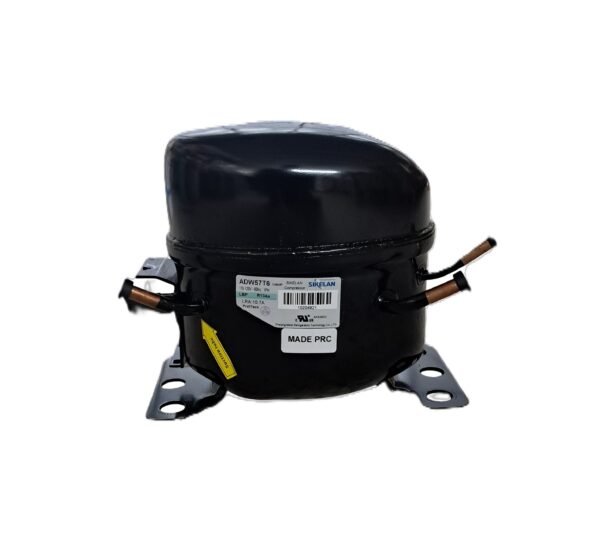

Sikelan ADW57T6 Compressor
1/4 HP 546 BTU/h @ -23.3°C / -10°F LBP 110–120V 50/60Hz R134a

📘 Technical Overview
The Sikelan ADW57T6 is a hermetically sealed reciprocating compressor designed for low back pressure (LBP) refrigeration applications. Optimized for use with R134a refrigerant, it delivers a cooling capacity of 546 BTU/h at an evaporating temperature of -23.3°C (-10°F), making it ideal for compact refrigeration systems requiring stable performance under deep-freeze conditions.
This model features a 1/4 horsepower single-phase induction motor with a CSIR (Capacitor Start, Induction Run) configuration, ensuring reliable startup and consistent operation. It supports 110–120V AC input and operates at both 50Hz and 60Hz, allowing for flexible deployment across North American.

🔧 Specifications
• Model: ADW57T6
• Refrigerant: R134a
• Application Type: Low Back Pressure (LBP)
• Cooling Capacity: 546 BTU/h @ -23.3°C / -10°F
• Motor Power: 1/4 HP
• Voltage Range: 110–120V AC
• Frequency: 50/60Hz
• Motor Type: Single-phase induction
• Starting Method: CSIR (Capacitor Start, Induction Run)
• Compressor Type: Hermetic reciprocating
• Oil Type: POE (Polyester Oil), factory pre-charged

• Ambient Temperature Range: -10°C to +43°C
• Evaporating Temperature Range: -23.3°C to -10°C
• Thermal Protection: Internal overload protector
• Certifications: CE, UL, CCC, ROHS

⚙️ Performance & Reliability
• Stable Cooling Output: Rated for 546 BTU/h at deep-freeze conditions, ideal for ice makers, freezers, and beverage coolers
• Energy Efficiency: High COP (Coefficient of Performance) for reduced power consumption
• Quiet Operation: Low-noise motor and vibration-isolated mounting for noise-sensitive environments
• Durability: Hermetic shell and POE lubrication ensure long-term reliability and minimal maintenance
• Safety Features: Integrated thermal overload protection prevents overheating and motor damage

🧊 Recommended Applications
• Compact freezers and refrigerators
• Beverage and wine coolers
• Ice makers and under-counter chillers
• Small commercial refrigeration units
• Display cabinets and light-duty cold storage systems
