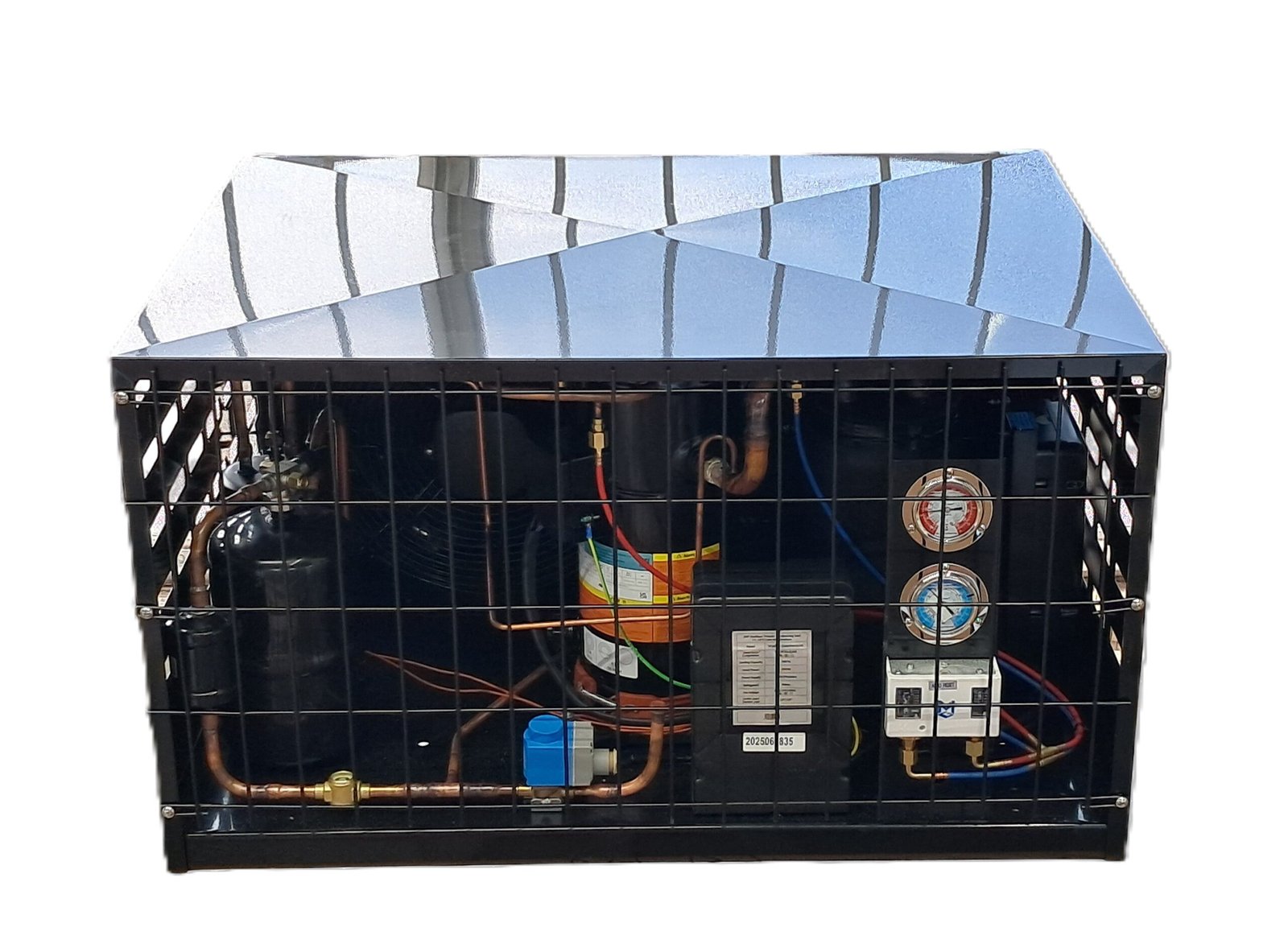

3HP Outdoor Condenser Freezer unit YF20E3G-Q100 FNH33

❄️ Outdoor Low-Temperature Condenser Freezer Unit
Model: YF20E3G-Q100 FNH33
Cooling Capacity: 19,817 BTU/H
Temperature Range: Down to -25°C
Refrigerant: R404A
Power Supply: 220V / 60Hz / Single Phase
🌡️ Built for Precision Cold Storage
Engineered for demanding refrigeration environments, this outdoor condenser freezer unit delivers powerful and reliable low-temperature performance. With a robust 3HP cooling system and advanced airflow design, it’s ideal for walk-in freezers, cold rooms, and industrial cooling applications.

🔧 Key Features
• Invotech Scroll Compressor
High-efficiency YF20E3G-Q100 compressor with a displacement of 46.6 cm³ ensures consistent performance and energy savings.
• Durable Condenser System
Integrated FNH33Bm2 condenser provides optimal heat exchange and long-term reliability in outdoor conditions.
• High-Performance Fan Assembly
Dual 350mm axial fans powered by 180W motors each, delivering a combined air volume of 7,000 m³/h for rapid heat dissipation.
• Advanced Refrigerant Control
Equipped with a DTC valve for precise refrigerant flow, enhancing system stability and cooling efficiency.
• Low-Temperature Capability
Designed to maintain temperatures as low as -25°C, perfect for deep-freeze applications.

✅ Applications
• Commercial walk-in freezers
• Cold storage warehouses
• Food processing facilities
• Pharmaceutical refrigeration
• Industrial cooling systems

📘 Product Specifications at a Glance
• Temperature Range: -25°C
• Cooling Capacity: 19,817 BTU/H
• Compressor: Invotech YF20E3G-Q100, 46.6 cm³ displacement
• Refrigerant: R404A
• Voltage: 220V / 60Hz / Single Phase
• Cooling Power: 3HP with DTC valve
• Condenser: FNH33Bm2
• Fan Quantity: 2 axial fans
• Fan Diameter: 350mm each
• Fan Power: 180W × 2
• Air Volume: 7,000 m³/h
